3V100 Series Soleniod Valve
3V110-06 DC24V 2 Position 3 Way Solenoid valve 3V110-M5,3V120-06

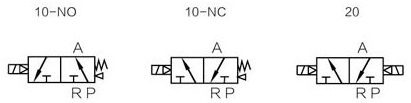

Symbol

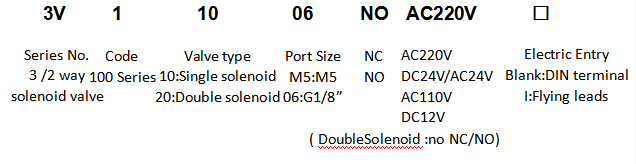

Order code
Technical Parameter
Model
3V110-M5
3V120-M5
3V110-06
3V120-06
Fluid
Air
Acting
Internal pilot or External pilot
Original state
NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO
Lubrication
No required
Orifice size
5.5mm2
12.0mm2
Port size
In=out=M5
In=out=G1/8
Protective class
IP65
Pressure range
0.15-0.8MPa(21~114psi)
Proof pressure
1.2MPa(215psi)
Material of body
Aluminum Alloy
Temperature
-5℃~60℃
Response speed
<0.05s

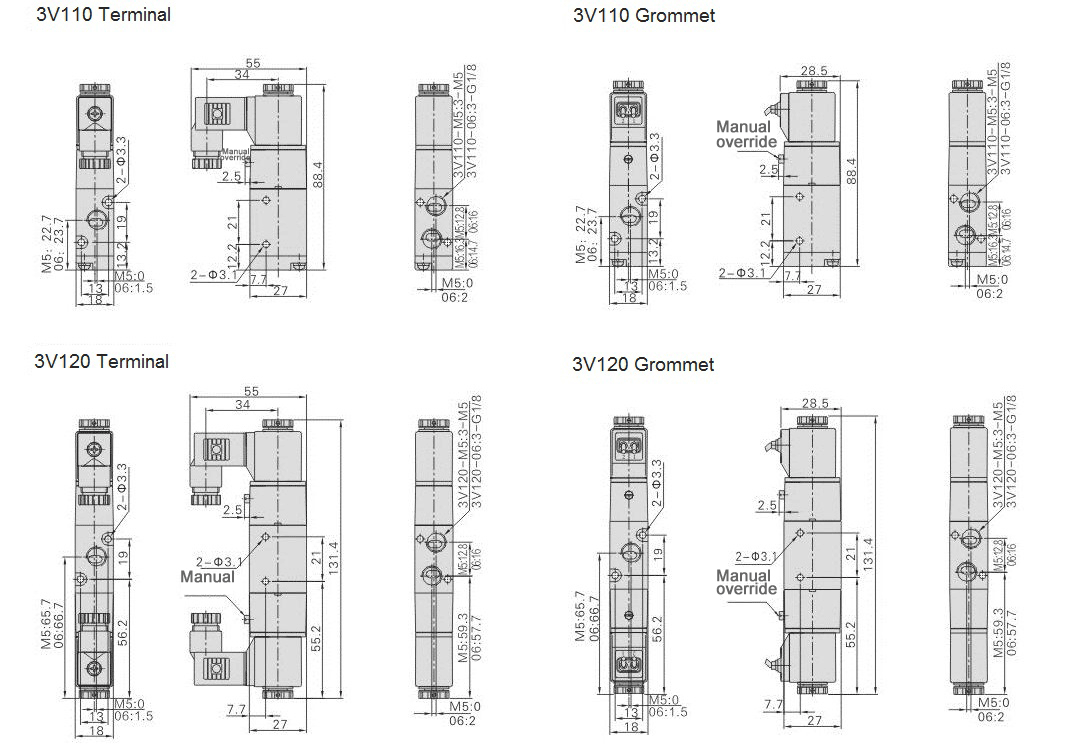

Drawing
Feature
3V110,3V120 solenoid valve is applied widely to the pneumatic system and mechanism, such as textile industry, light industry and chemical industry, etc.
Can generally be used to drive the air flow direction of the double-acting mechanical cylinder
