3V200 Series Soleniod Valve
3V210 Pneumatci solenoid valve 3V210-06 3V210-08 3V120-06 3V120-08

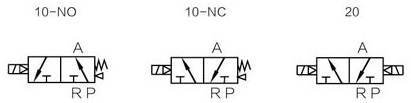

Symbol

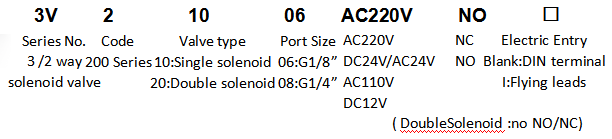

Order code
Technical parameter
|
Model |
3V210-06 |
3V220-06 |
3V210-08 |
3V220-08 |
|
Fluid |
Air |
|||
|
Acting |
Internal pilot |
|||
|
Original state |
NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO |
|||
|
Lubrication |
No required |
|||
|
Orifice size |
14.0mm2 |
16.0mm2 |
||
|
Port size |
In=out=G1/8 |
In=out=G1/4 |
||
|
Protective class |
IP65 |
|||
|
Pressure range |
0.15-0.8MPa(21~114psi) |
|||
|
Proof pressure |
1.2MPa(215psi) |
|||
|
Material of body |
Aluminum Alloy |
|||
|
Temperature |
-5℃~60℃ |
|||
|
Response speed |
<0.05s |
|||
Feature
.2 Position 3 Way Solenoid Valve (normally open)
.DC12V【W(wǎng)orking Pressure】25~116Psi
.Valve stays open when the coil is de-energized- and it closes when energized..
.High-quality solenoid valve pilot head, sensitive response, response speed 5 times per second, stable performance.
