3V300 Series Soleniod Valve
3V310-10 Pneumatic electric single coil directional control solenoid valve 3V310-08 3V320-08 3V310-10 3V320-10

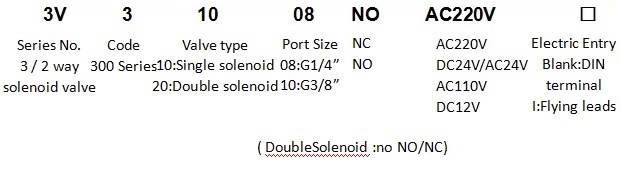

Order code

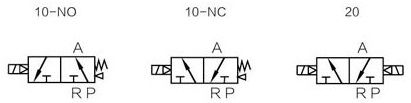

Symbol
Technical parameter
Model
3V310-08
3V320-08
3V310-10
3V320-10
Fluid
Air
Acting
Internal pilot
Original state
NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO
Lubrication
No required
Orifice size
25.0mm2
30.0mm2
Port size
In=out=G1/4
In=out=G3/8
Protective class
IP65
Pressure range
0.15-0.8MPa(21~114psi)
Proof pressure
1.2MPa(215psi)
Material of body
Aluminum Alloy
Temperature
-5℃~60℃
Response speed
<0.05s

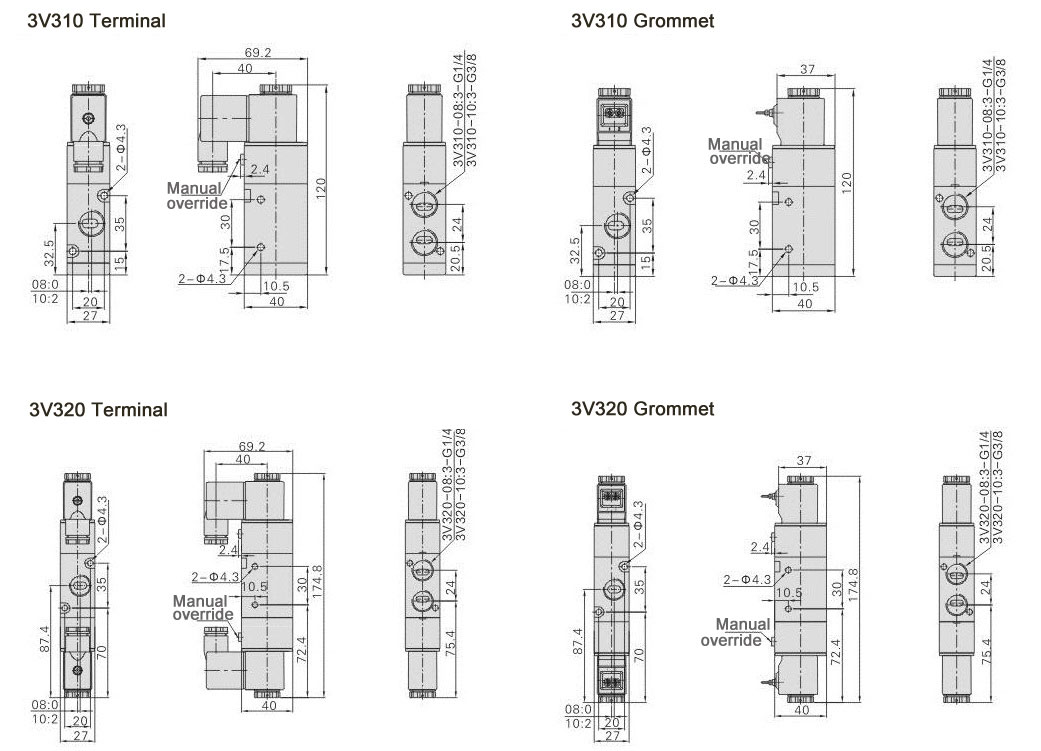

Dimension
Feature
.Pilot-oriented mode:Internal pilot or external pilot.
.Structure in sliding column mode: good tightness and sensitive reaction.
.Double control solenoid valves have memory function.
.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
.No need to add oil for lubrication.
.It is available to form integrated valve group with the base to save installation space.
.Affiliated manual devices are equipped to facilitate installation and debugging.
.Several standard voltage grades are optional.
