4M200 Series Soleniod Valve
4M210-08 NAMUR type pneumatic air solenoid valve for butterfly valve

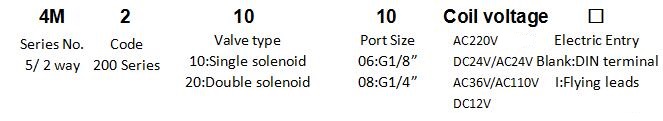

Order code

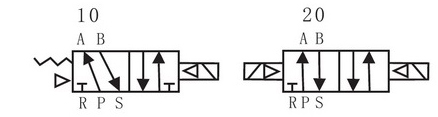

Symbol
Technical parameter
Model
4M210-06
4M220-06
4M210-08
4M220-08
Fluid
Air
Acting
Internal pilot
Valve type
5/2 way
Orifice size
14mm2
16mm2
Lubrication
No required
Port size
In=out=G1/8
In=out=G1/4
Protective class
IP65
Pressure range
0.15-0.8MPa(21~1145Psi)
Proof pressure
1.2MPa(170psi)
Material of body
Aluminum Alloy
Temperature
-5℃~60℃
Response speed
<0.05s

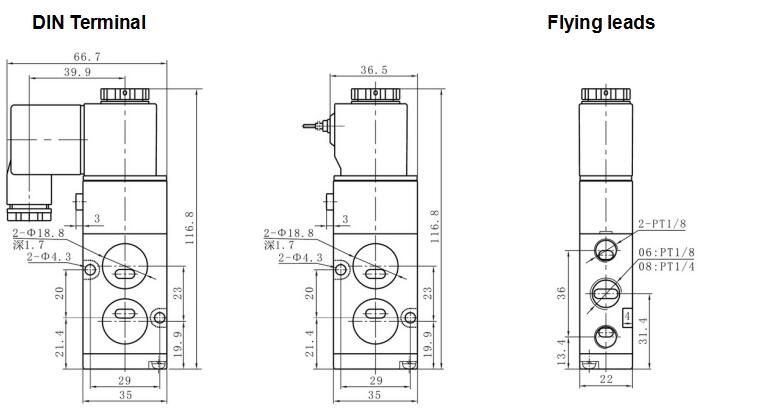

4M210 Dimension

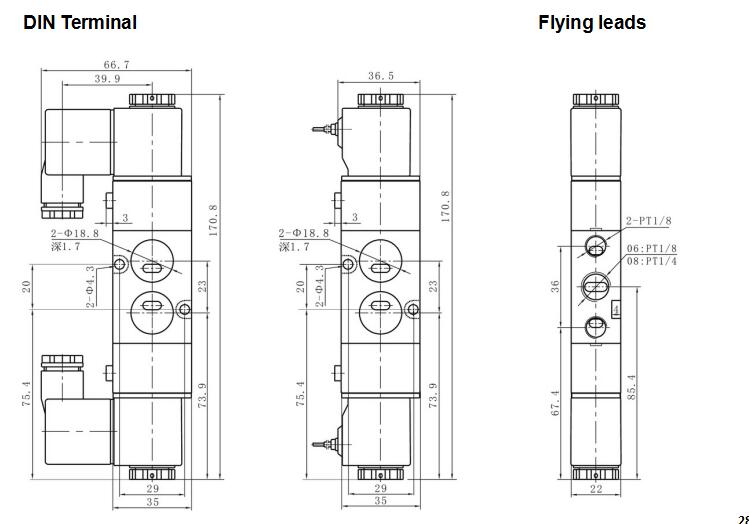

4M220 Dimension
Feature
. Pilot-oriented mode:Internal pilot or external pilot.
. Structure in sliding column mode: good tightness and sensitive reaction.
. Three position solenoid valves have three kinds of central function for your choice.
. Double control solenoid valves have memory function.
. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
. No need to add oil for lubrication.
. It is available to form integrated valve group with the base to save installation space.
. Affiliated manual devices are equipped to facilitate installation and debugging.
. Several standard voltage grades are optional
