5V200 Series Soleniod Valve
5V series pneumatic air valve 5V210-08

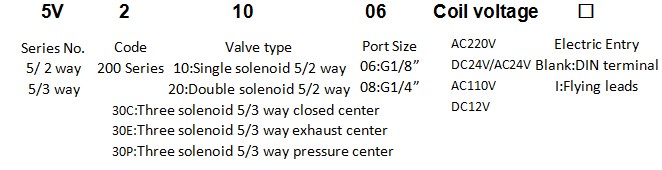

Order code
Symbol
Technical Parameter
|
Model |
5V210-06 |
5V220-06 |
5V230-06 |
5V210-08 |
5V220-08 |
5V230-08 |
|
Fluid |
Air |
|||||
|
Acting |
Internal pilot |
|||||
|
Valve type |
5/2 way |
|||||
|
Orifice size |
14.0mm2 |
16.0mm2 |
||||
|
Lubrication |
No required |
|||||
|
Port size |
In=out=G1/8 |
In=out=G1/4 |
||||
|
Protective class |
IP65 |
|||||
|
Pressure range |
0.15-0.8MPa |
|||||
|
Proof pressure |
1.5MPa |
|||||
|
Material of body |
Aluminum Alloy |
|||||
|
Temperature |
-20℃~70℃ |
|||||
|
Response speed |
<0.05s |
|||||

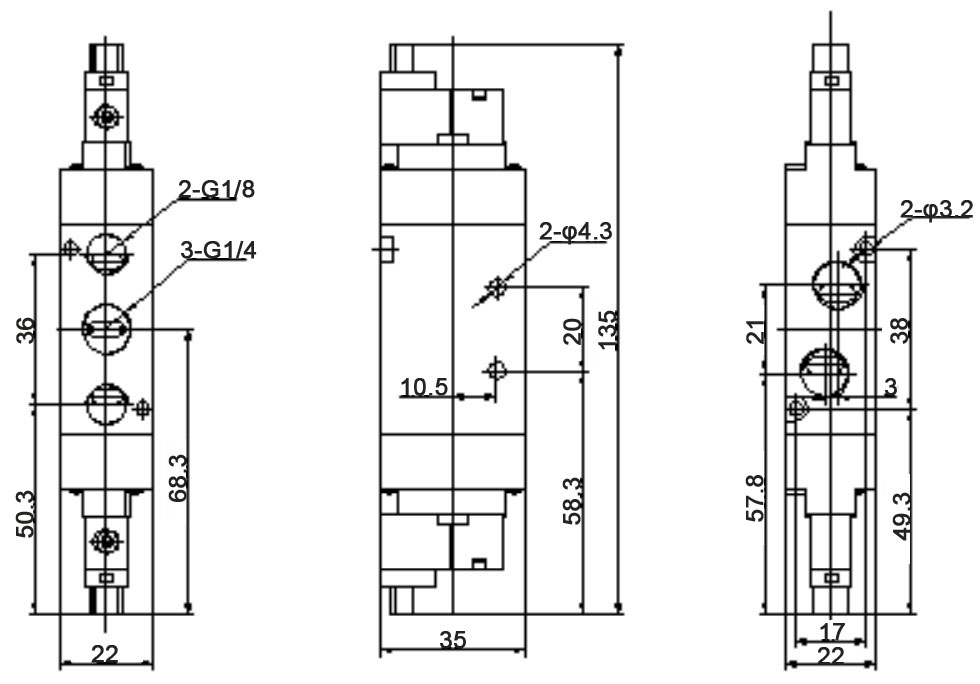

5V220 Dimension

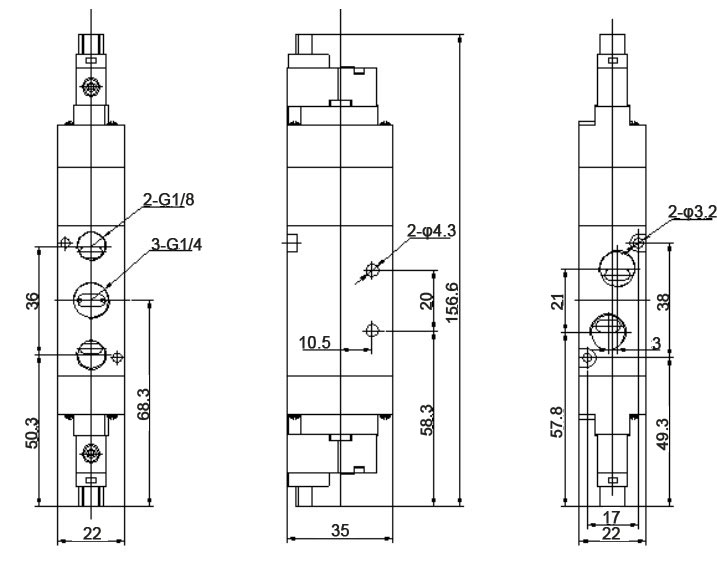

5V230 Dimension
Feature
1.Electrical entry is terminal, horizontal and vertical insertion can freely switch.
2.Inner exhaust structure, which can collect pilot airflow, and then exhaust intensively from R,S port.
3.Die-cast molding with aluminum alloy for body, the shape of cavity is reasinable, which can increase valves flow.
4.Threaded type and quick connector type are optional, and can integrate manifold to form valve group to save space.
