CM3 series 3 position 2 way pneumatic control mechanical valves CM3B CM3R CM3L CM3PF CM3PP CM3PM CM3PL CM3HS
	Order Code

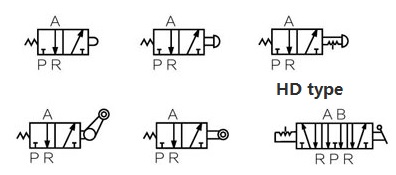

Symbol


Technical parameter


						Item No.

						CM3□-05

						CM3□-06

						CM3□-08

						Fluid

						Air

						Operation type

						External control

						Pressure range

						0-1.0 Mpa

						Proof pressure

						1.5Mpa

						Ambient and fluid temperature

						-20 to 70℃

						Valve type

						3 port 2 position

						Port size

						M5*0.8

						1/8”

						1/4”

						Orifize size

						2.0mm2

						2.5mm2

						15.0mm2

						Cv value

						0.11

						0.14

						0.84

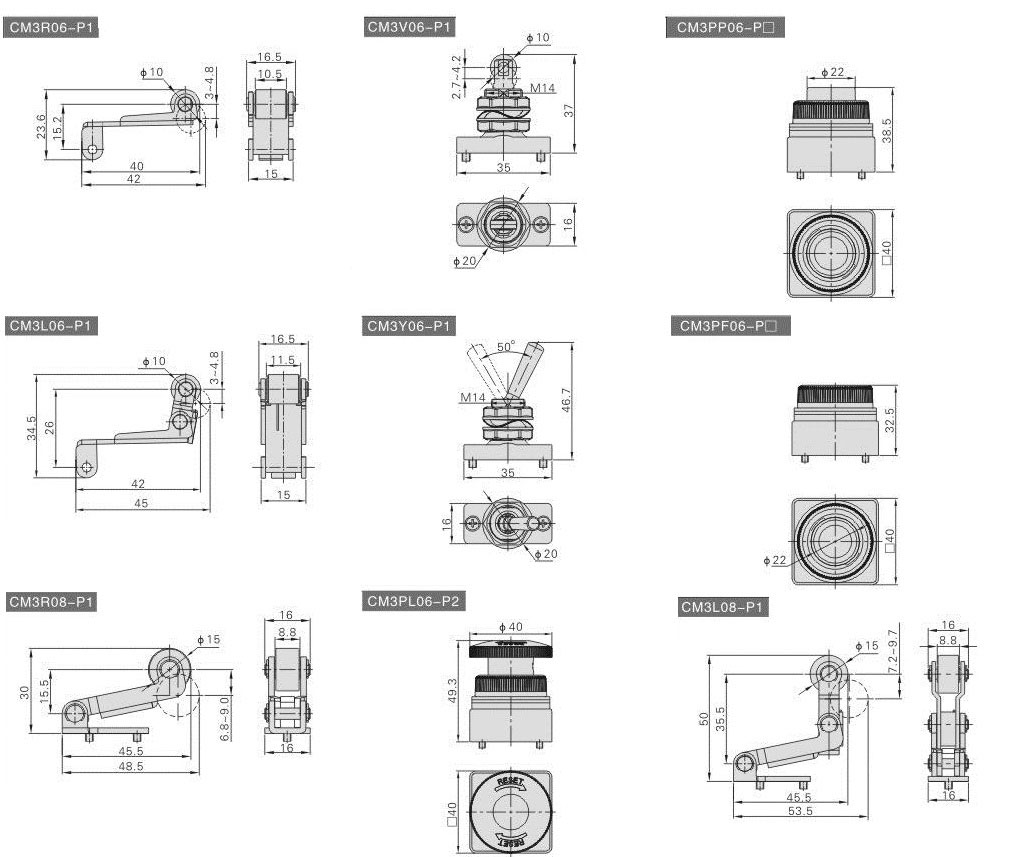

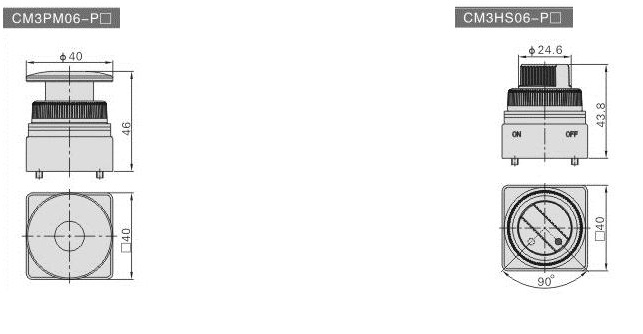

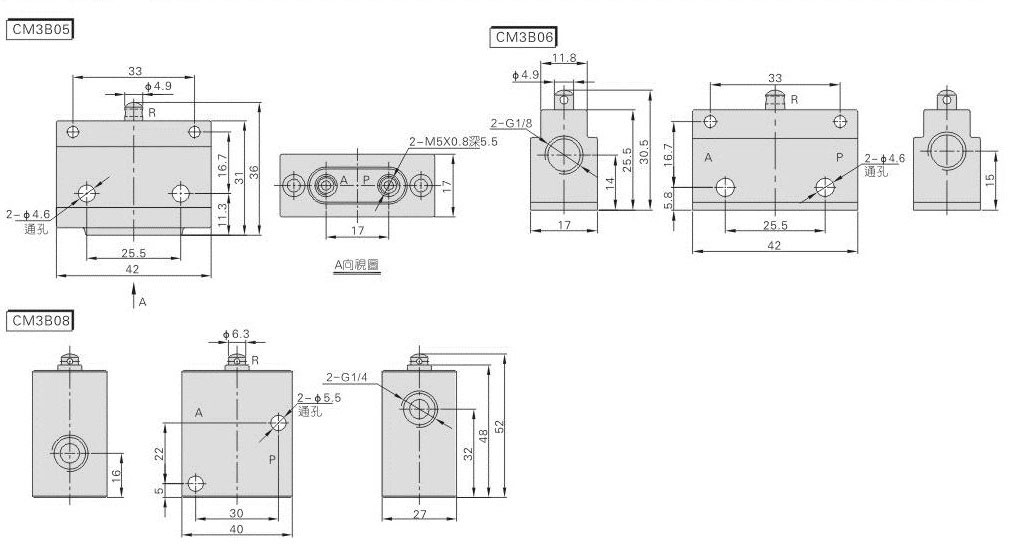

Dimension



















































































Feature
Airtac replacement CM3 manual mechanical valves are 3 way valves and are available with M5 ports 1/8 ports, or 1/4 ports.
A variety of manual and mechanical operators allow the CM3 series to be used as limit valves or to manually control circuit operation.
	The non-threaded exhaust port allows the CM3 valves to be very compact in size.  In addition to the wide range of manual actuators including large shrouded palm buttons.





 CM3 Series Mechanical Valves
          CM3 Series Mechanical Valves
