Foot Valves -
3FM210 foot pedal valve  3FM210 foot pedal valve
產(chǎn)品參數(shù)

3FM210 3 way 2 position foot-operated air directional control valve

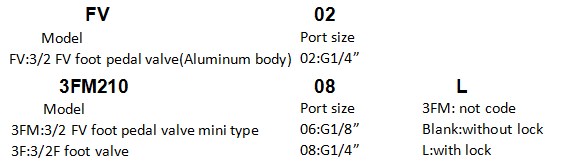

Order code


Symbol


Technical parameter

Model

FV-02

3F210-06

3FM210-06

3F210-08

3F210-08L

Fluid

Air

Acting

Direct acting type controlled by foot normally closed

Port size

G1/4

G1/8

G1/8

G1/4

G1/4

Valve type

3/2 way

Pressure range

0-0.8MPa

Proof pressure

1.5MPa

Temperature

-20℃~70℃

Body material

FV:Aluminum alloy ;3FM:Plastic ;3F:Aluminum alloy

Lubrication

No required

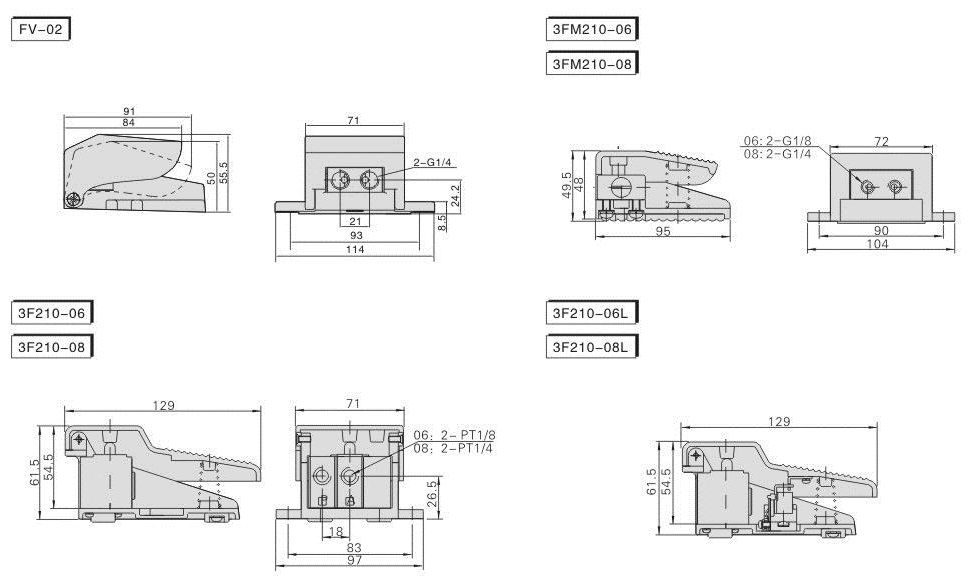

Dimension


Feature

Direct acting and normally closed type;
The 3F series has aluminum foot pedal and 3FM series has plastic foot pedal, in direct acting type, horizontal and compact structure;
If the duration of direction-change is long, the valves with lock may be used;
The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact.
