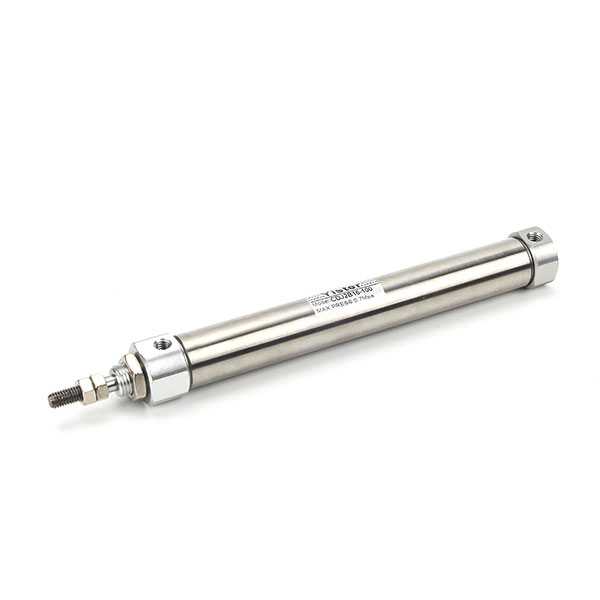

CDJ2B Series Stainless steel Mini Cylinder
SMC type CDJ2B series round body stainless steel mini pneumatic air cylinder

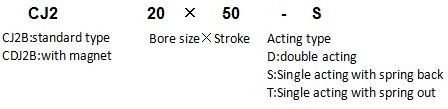

Order code
Symbol
Technical parameter
Bore size(mm)
6
10
16
Acting type
Double acting,Single acting:spring back/spring out
Fluid
Air
Operating pressure
0.1~0.7MPa
Proof pressure
1.05MPa
Temperature ℃
-5~60
Cushion type
No cushion
Port size
M5
Body material
Stainless Steel
Stroke
Bore size(mm)
Standard stroke(mm)
6
15 20 25 30 35 40 45 50 55 60
10
15 20 25 30 35 40 45 50 55 60
16
15 20 25 30 35 40 45 50 55 60 75 100 125

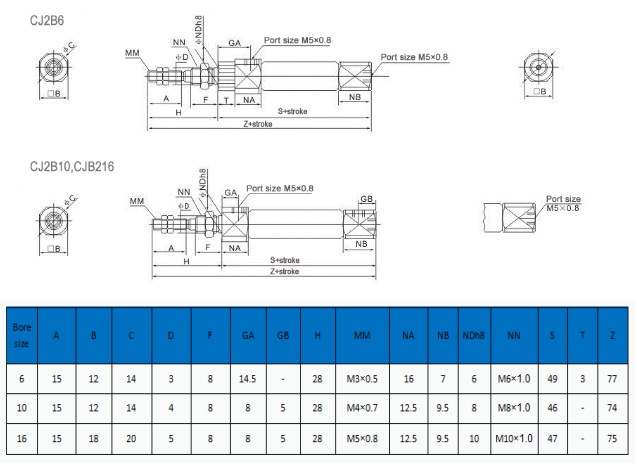

Dimension
Feature
.SMC Type CJ2 CJ2B CDJ2B Series Stainless Steel Mini Pneumatic Air Cylinder is widely used textile, printing, rubber, paper industries.
.The axial installation and vertical installation is optional
. acting type could be double acting, single extend acting, single return acting etc
.Both ends have rubber buffering.
