CQ2B Seris Thin Cylinder

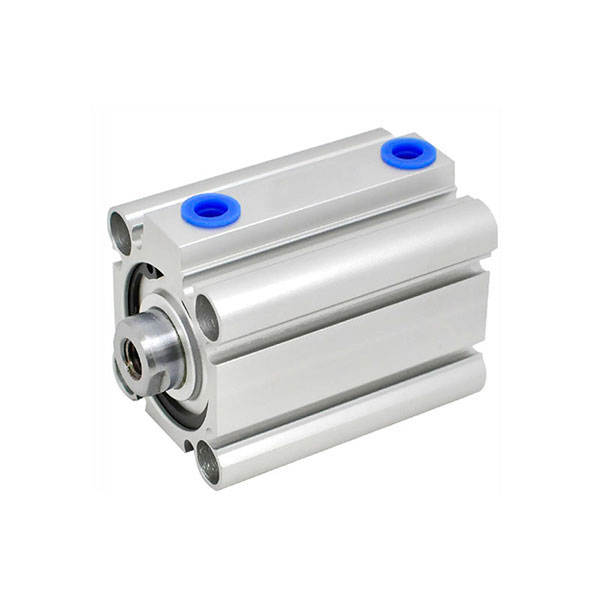

SMC standard double acting CQ2B series compact pneumatic thin air cylinder

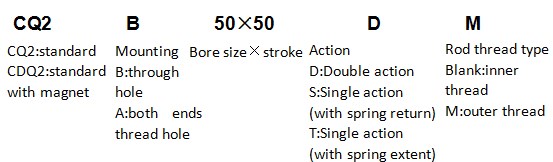

Order code

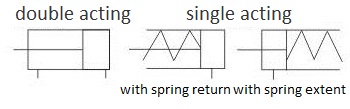

Symbol
Technical parameter
Bore size(mm)
12
16
20
25
32
40
50
63
80
100
Acting type
Double acting;Single acting:with spring return/with spring extent
Fluid
Air for compact cylinder
Operating pressure
0.1~0.9MPa
Proof pressure
1.35Mpa
Temperature ℃
-5~+60
Gripping force
0.16N.m
0.55N.m
1.10N.m
2.30N.m
Open or close angle
Open:-2°~-5° Close:180°±2°
Cushion type
No
Installation
Standard:Through hole;both ends thread hole
Port size
M5×0.8
1/8”
1/4”
3/8”

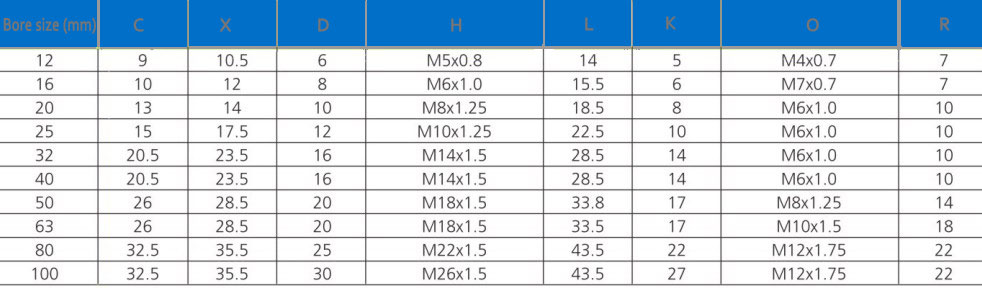

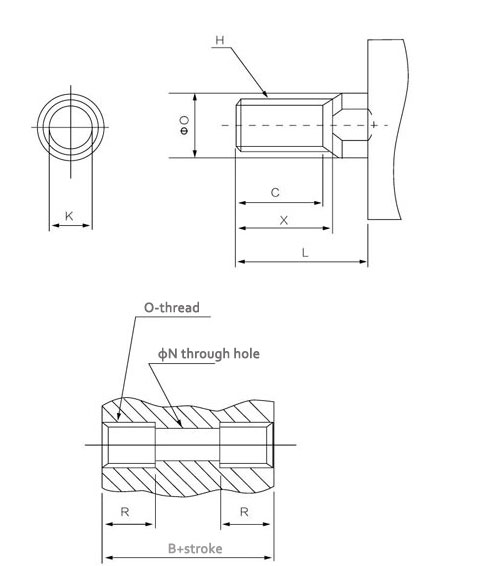

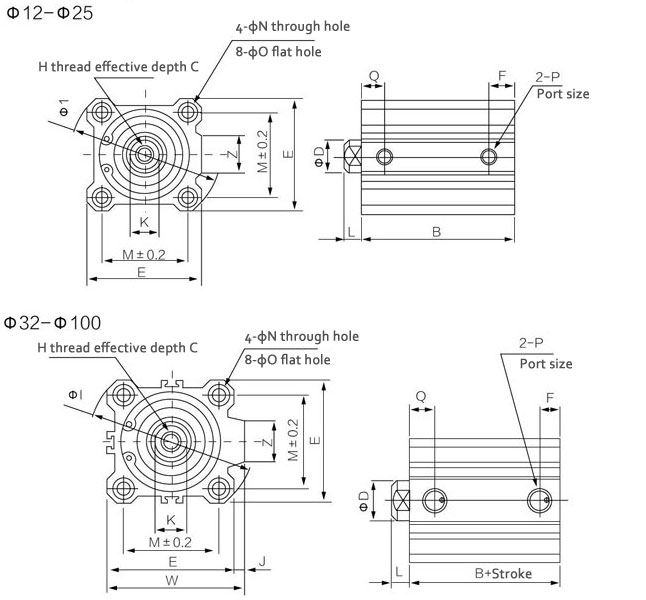

Dimension
Feature
CQ2 CQ2B series thin cylinders are widely applicable for the automatic production and control in the fields such as metallurgy, shipbuilding, light industry machinery, food packing machinery etc.
