English
Cylinder -
DNC Series Standard Cylinder DNC Series Standard Cylinder
產(chǎn)品參數(shù)

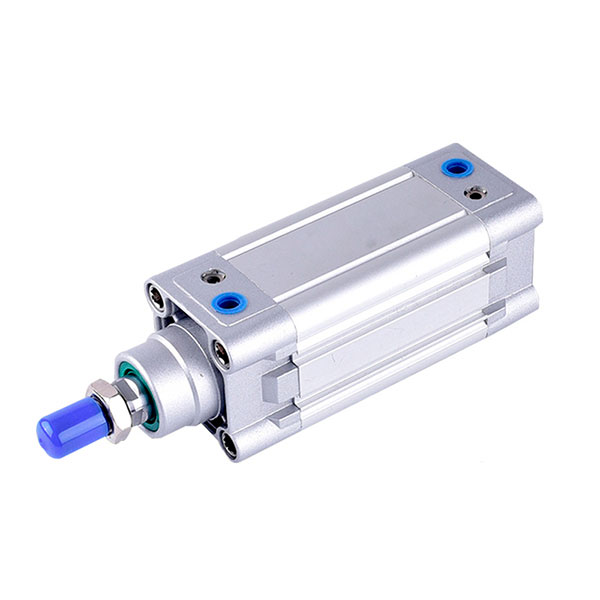

Festo type Aluminum double acting DNC Series ISO15552 Standard Pneumatic Cylinder

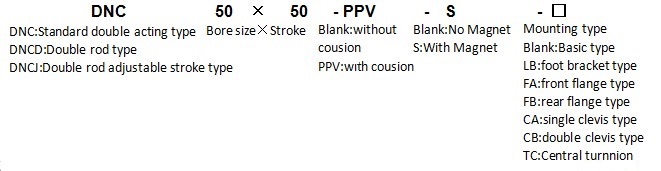

Order code

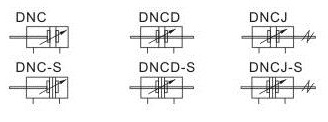

Symbol


Technical parameter

Bore size(mm)

32

40

50

63

80

100

Acting type

Double acting

Fluid

Air

Mounting type

DNC

Basic FA FB CA CB LB TC TCM1 CR FTC

DNCD,

DNCJ

Basic FA LB TC TCM1

Operating pressure

0.15~1.0MPa

Proof pressure

1.5MPa

Temperature

-20~70

Speed range mm/s

30~800

Cushion type

Variable cushion

Adjustable cushion stroke

27mm

30mm

36mm

Port size

1/8

1/4

3/8

1/2

Stroke

Item no

Bore size

(mm)

Standard stroke

(mm)

Max.stroke

(mm)

Allowable stroke

(mm)

DNC

DNCD

DNCJ

32

25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500

1000

1800

40

25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800

1200

1800

50

25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000

1200

1800

63

1500

1800

80

1500

1800

100

1500

1800

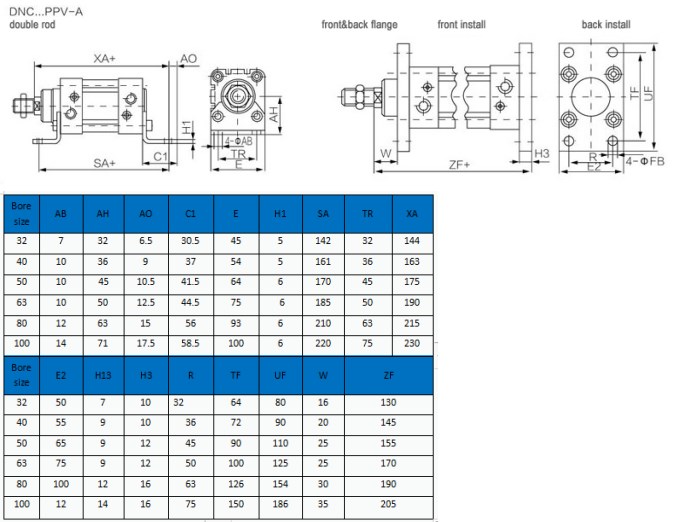

Dimension


Feature

.DNC Series Double Acting Magnetic ISO15552 Standard Pneumatic Cylinder is good quality and low price, and the high-quality sealing ring is durable

.DNC air cylinder is widely used in printing (tension control), semiconductor (spot welding machine, chip grinding), automation control, robot and other industries.
