English
Cylinder -

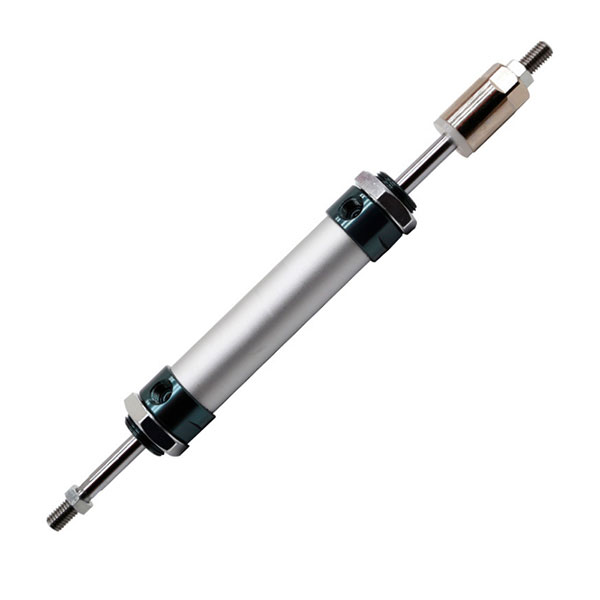

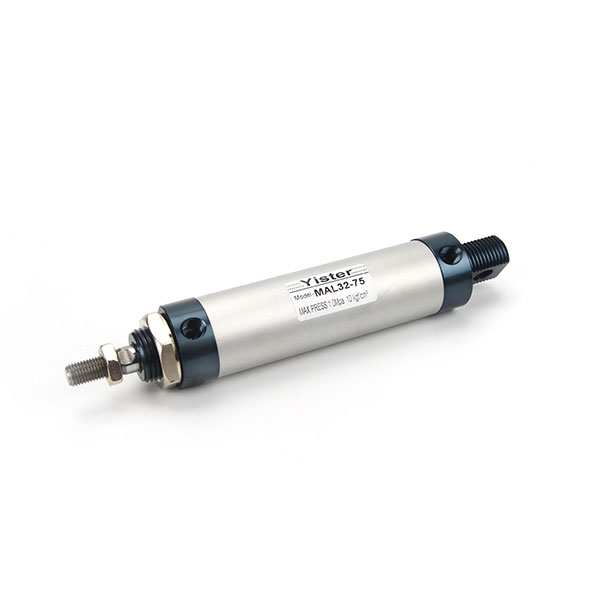

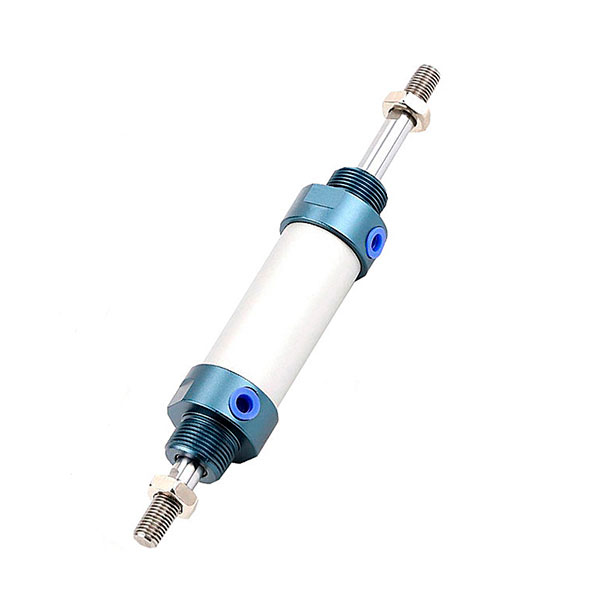

MAL Series Aluminum Alloy Mini Cylinder MAL Series Aluminum Alloy Mini Cylinder
產(chǎn)品參數(shù)

MAL Series Aluminum Alloy Low Speed  Multi-mounting Small Mini Air Cylinder

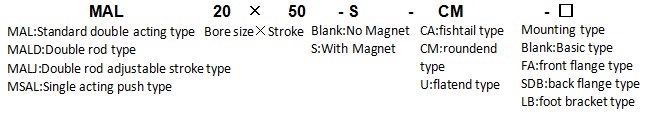

Order code

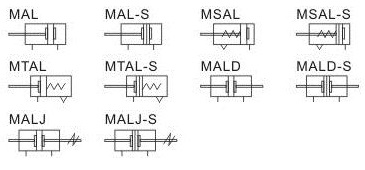

Symbol


Technical parameter

Bore size(mm)

16

20

25

32

40

Acting type

Double acting

Fluid

Air

Operating pressure

0.1~1.0MPa

Proof pressure

1.5MPa

Temperature

-20~70

Speed range mm/s

30~800

Cushion type

Standard type

Anti-crush cushion

Bumper type

Adjustable cushion

Port size

M5

1/8

1/4

Stroke

Bore size

(mm)

Standard stroke

(mm)

Max.stroke

(mm)

Allowable stroke

(mm)

16

25 50 75 80 100 125 150 160 175 200

300

500

20

25 50 75 80 100 125 150 160 175 200 250 300

500

650

25

25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500

500

650

32

40

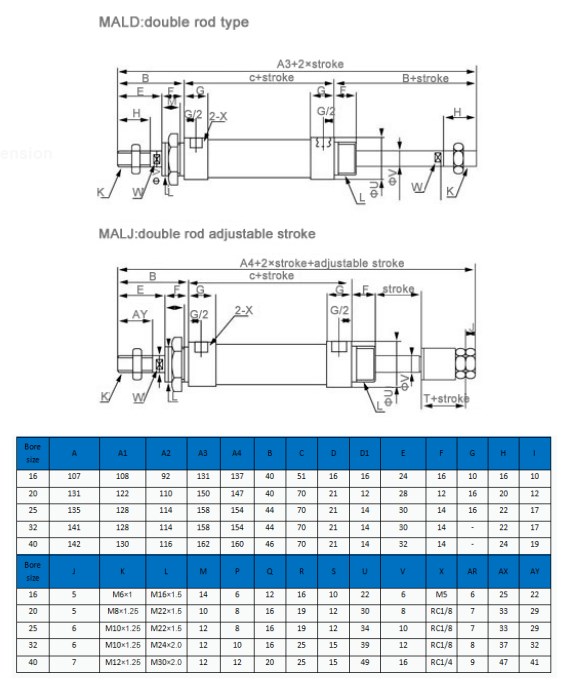

Dimension


Feature

.MAL mini cylinder is adapt the bearing with oil, lubrication is not required for the piston rod.

.Not only the fixed cushion, the adjustable cushion is also optional in the end of the cylinder, so that it will be calm when changing the directions.

.Heat resistance performance With anti-heat material, the working temperature of the cylinder could be up to 150℃

. Mluti installation accessories are available

. A magnet is installed on the piston, by switching the button to check the operation position of the cylinder
