Cylinder -
MA Series Stainless steel Mini Cylinder MA Series Stainless steel Mini Cylinder
產(chǎn)品參數(shù)

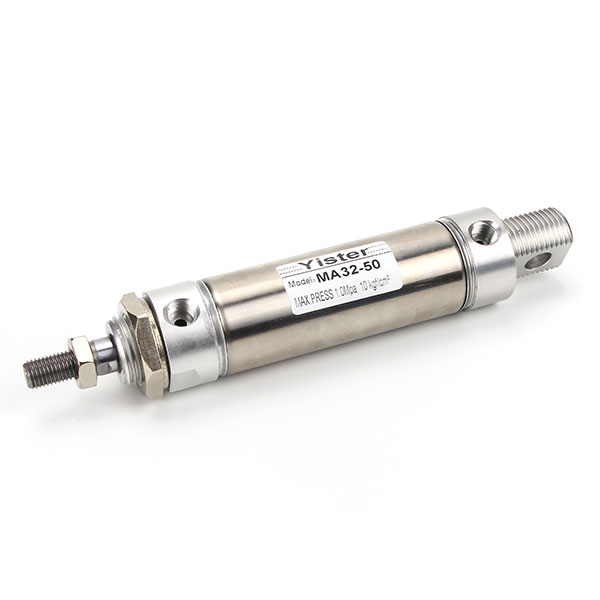

MA series round body double action stainless steel Miniature pneumatic Air cylinder with magnetic

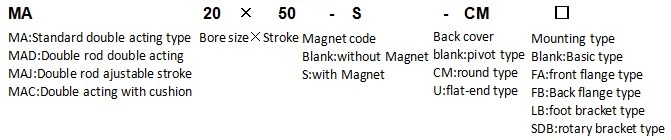

Order code

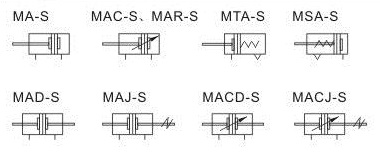

Symbol


Technical parameter

Bore size(mm)

16

20

25

32

40

Acting type

Double acting mini cylinders

Fluid

Air

Operating pressure

0.1~0.9MPa

Proof pressure

1.35MPa

Temperature

-5~60

Cushion type

No cushion

Port size

M5

1/8

Body material

Stainless Steel

Stroke

Bore size(mm)

Standard stroke(mm) for MA stainless steel mini cylinder

Max std stroke(mm)

Max Stroke(mm)

16

25 50 75 100 125 150 175 200

300

500

20

25 50 75 100 125 150 175 200 300

500

650

25

25 50 75 100 125 150 175 200 250 300

500

650

32

25 50 75 100 125 150 175 200 250 300

500

650

40

25 50 75 100 125 150 175 200 250 300

500

650

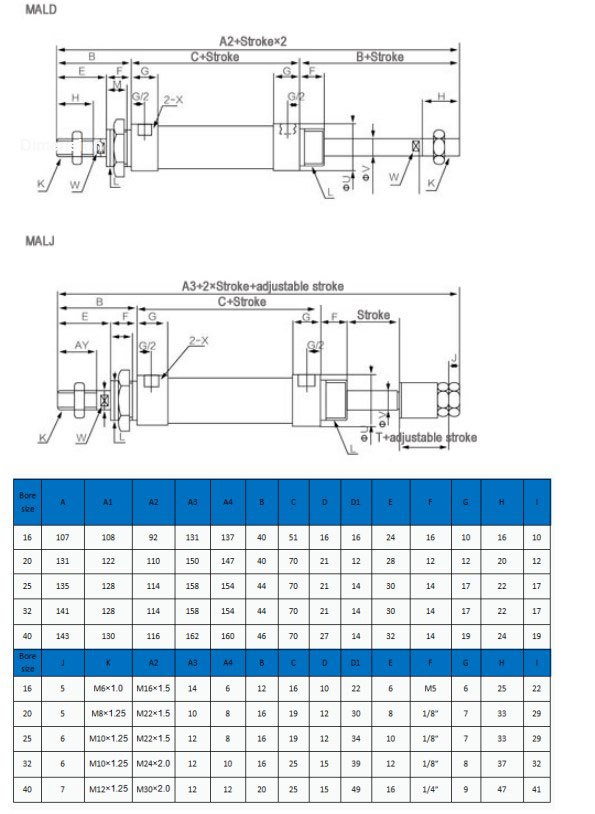

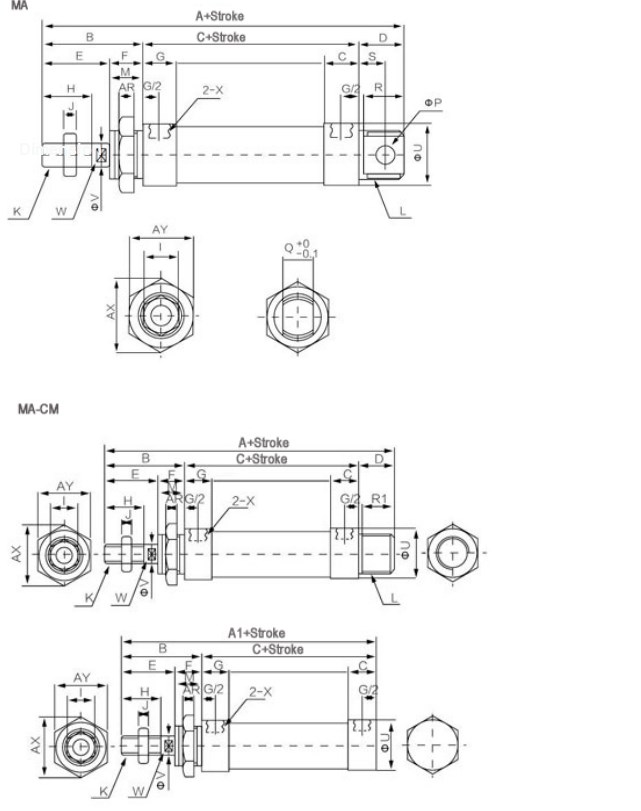

Dimension


Feature

.High precision chrome plated piston rod of MA round body min cylinder is wear-resistant and durable

.The two-way sealing design strengthens the sealing performance of the piston rod and has the function of oil storage

.The built-in magnetic ring in the air cylinder supports the installation of magnetic switch and bandage to adapt to a variety of working scenes.

.MA series pneumatic cylinder could adjust stroke.
