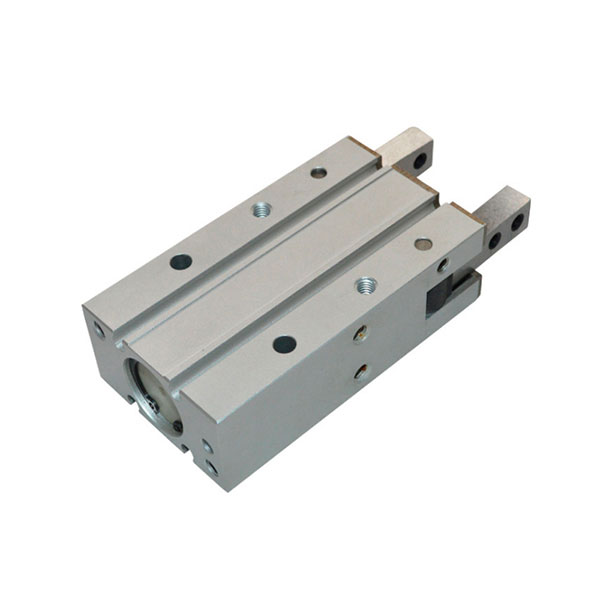

MHY2 Series Pneumatic Finger Air Gripper
MHY2 Series double acting 180 degree angular style Pneumatic Finger Air Gripper

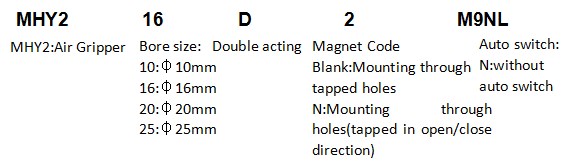

Order code

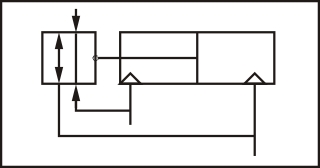

Symbol
Technical parameter
Bore size(mm)
10
16
20
25
Acting type
Double acting
Fluid
Air
Operating pressure
0.15~0.7MPa
Max.frequency
60(c.p.m)
Repeatability
±0.2mm
Temperature ℃
-5~+60
Gripping force
0.16N.m
0.55N.m
1.10N.m
2.30N.m
Open or close angle
Open:-2°~-5° Close:180°±2°
Cushion type
Bumper
Lubrication
Cylinder:Not required;Gripper jaws:Lubricate grease
Port size
M5×0.8

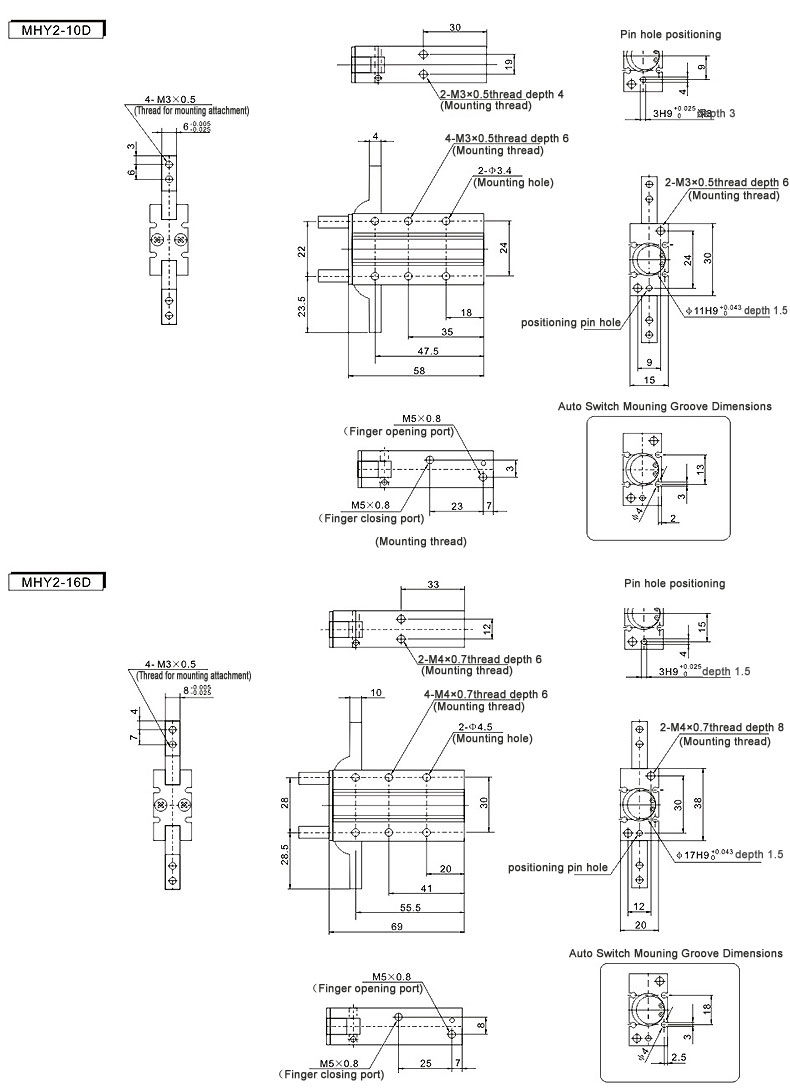

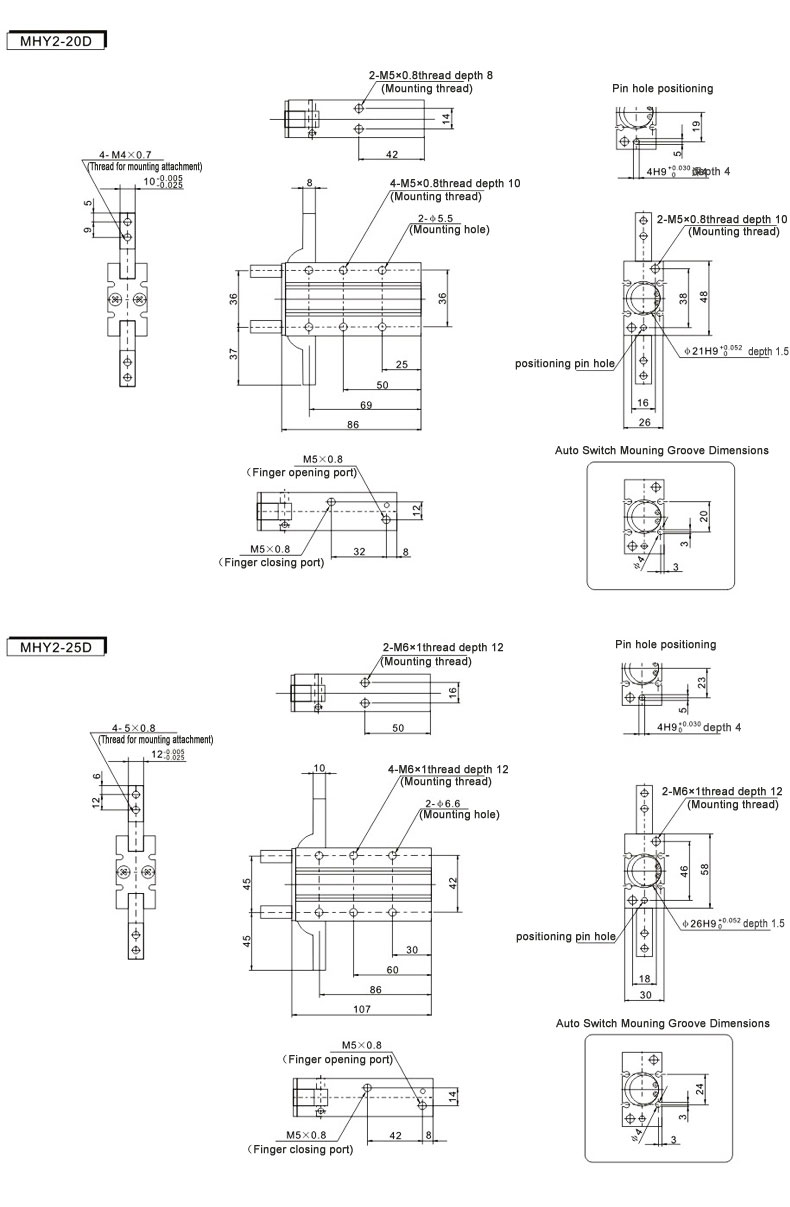

Dimension
Feature
The MHY2 is a compact 180-degree angular gripper. Its size and mass allow for small, lightweight tooling, while delivering large gripping forces via piston/cam design.
The MHY2 gives you maximum installation flexibility with mounting options on 4 sides and recessed auto switch grooves on either side of the gripper.
Precision reference points on body and fingers are standard.
