Cylinder -
TN series double rod cylinder TN series double rod cylinder
產(chǎn)品參數(shù)

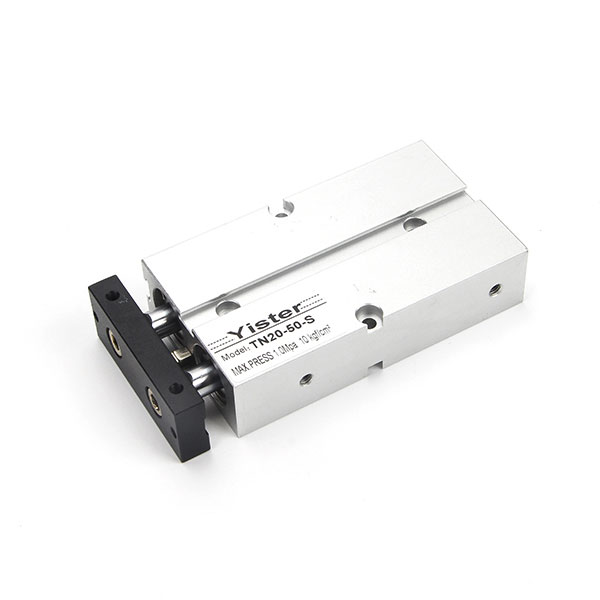

TN Series double acting twin rod Double-Shaft guided air Cylinder

Order code


Symbol


Technical parameter

Bore size(mm)

10

16

20

25

32

Acting type

Double acting

Fluid

Air

Operating pressure

0.1~0.9MPa

Proof pressure

1.35MPa

Temperature

-5~60

Cushion type

bumper

Port size

M5×0.8

1/8

Body material

Aluminum Alloy

Stroke

Bore size(mm)

Standard stroke(mm)

Tolerate stroke(mm)

Max. Stroke(mm)

10

10 20 30 40 50 60 70

70

100

16

10 20 30 40 50 60 70 80 90 100 125 150

150

200

20

10 20 30 40 50 60 70 80 90 100 125 150

150

200

25

10 20 30 40 50 60 70 80 90 100 125 150

150

200

32

10 20 30 40 50 60 70 80 90 100 125 150

150

200

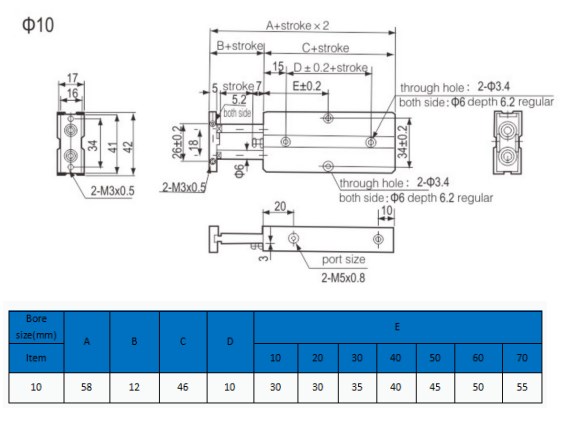

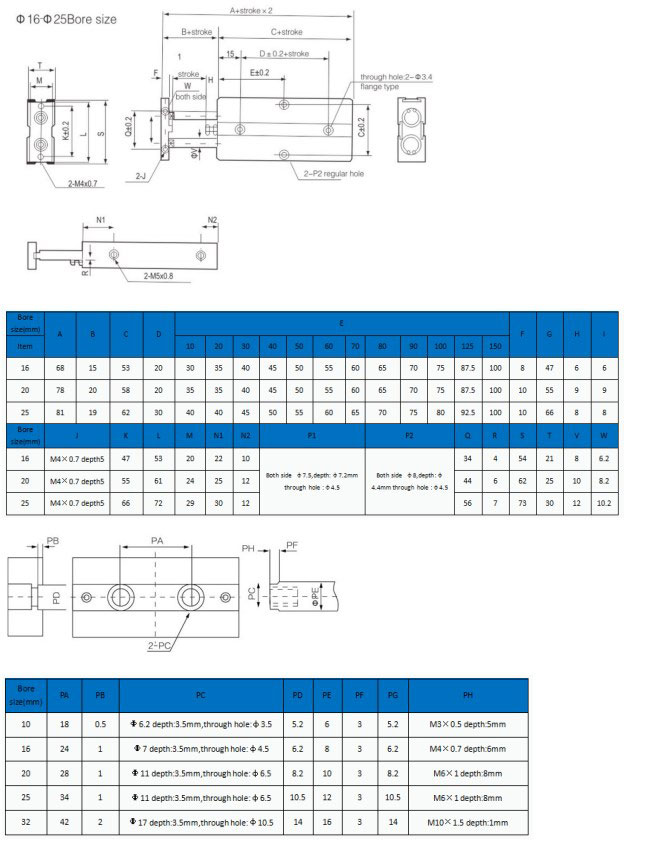

Dimension



Feature

.TN Series Double Shaft Two Rod Guide Cylinder Twin Pneumatic Air Cylinder with Magnet and suitable slot is designed for magnetic sensor fixing

.Embedding mounting and no need other brackets,room saving

.Easy to assemble and easy to maintain

.With self lubricating bearing,the piston rod is lubrication free.

.Precision grinding piston rod,cylinder parts were processed by high precision CNC lathe and CNC machining centre,and also good seals to guarantee good action and long lifetime.
