Air control Valve -
4A200 Series Air Control Valve 4A200 Series Air Control Valve
產(chǎn)品參數(shù)

Airtac standard Two-position five-way Pneumatic single double solenoid air control valve 4A210-06/08 4A220-06/08 4A230-06/08

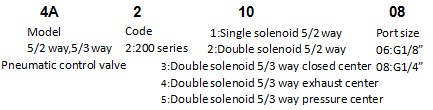

Order code

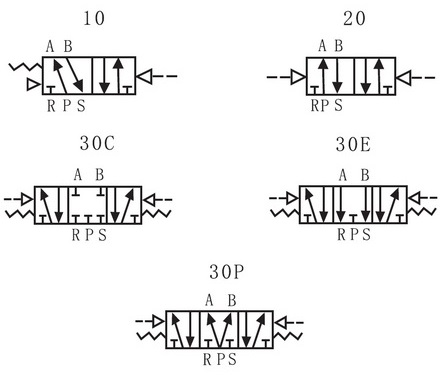

Symbol


Technical parameter

Model

4A210-06

4A220-06

4A230C-06

4A230E-06

4A230P-06

4A210-08

4A220-08

4A230C-08

4A230E-08

4A230P-08

Fluid

Air

Acting

Exterior control

Valve type

5/2 way

5/3 way

5/2 way

5/3 way

Orifice size

14mm2

12mm2

16mm2

12mm2

Lubrication

No required

Port size

In=out=Exhaust=G1/8

In=out=Exhaust=G1/4

Protective class

IP65

Pressure range

0.15-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

-5℃~60℃

Response

speed

<0.05s

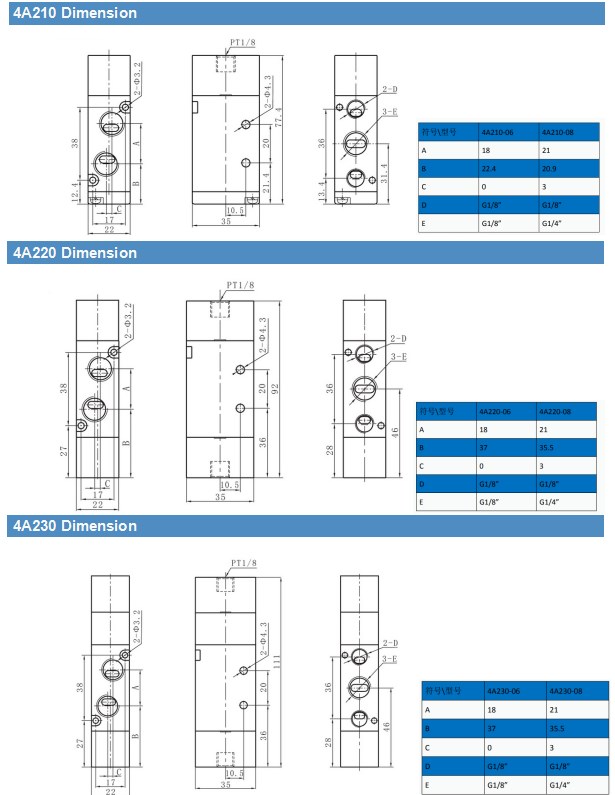

Dimension


Feature

.5 port air operated valve: 4A100, 4A200, 4A300 4A400series

. 4A210, 4A220, 4A230C, 4A230E, 4A230P series air operated valve.* Exterior control, 5 port 2 position or 5 port 3 position DC12V/24V Solenoid Air Control Valve Pneumatic Valve

.Port size: 1/8",1/4

.Double air control 5/2 way valves have memory function;

. Internal hole adopts special processing technology which has

little attrition friction, low start pressure and long service life;

. No need to add oil for lubrication;

. Integrate with the manifold to save installation space.
