4H400 Series Hand Lever Valve
1/2" 4H410-15 4H430-15 series 5/3 way manual solenoid valve hand operated lever valve

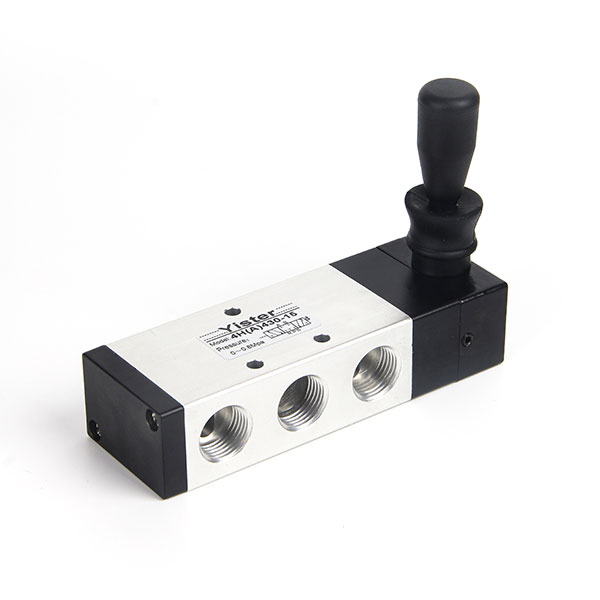

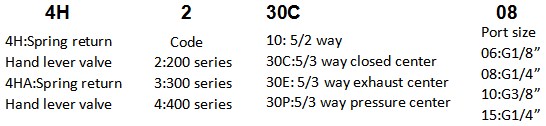

Order code

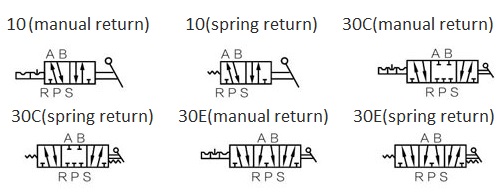

Symbol

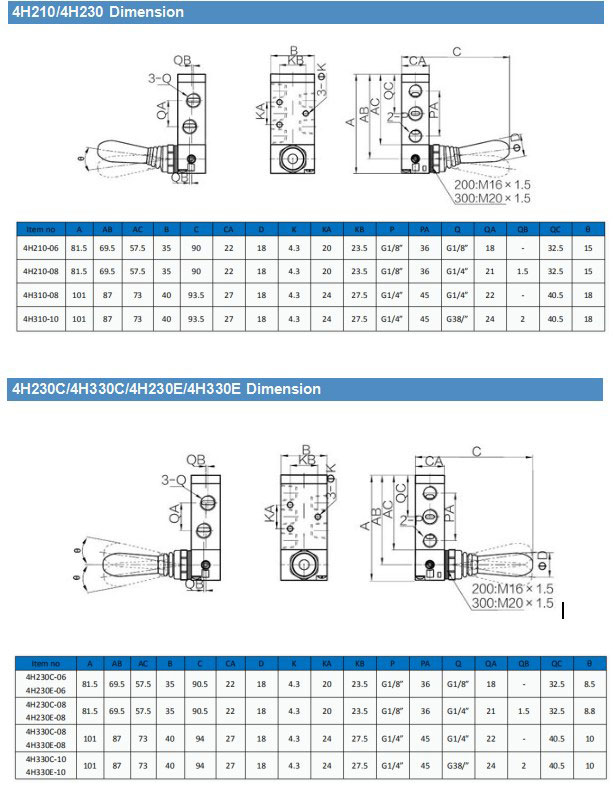

Technical parameter
|
Model |
4H210-08 4HA210-08 |
4H230-08 4HA230-08 |
4H310-08 4HA310-08 |
4H330-08 4HA330-08 |
4H310-10 4HA310-10 |
4H330-10 4HA330-10 |
4H410-15 4HA410-15 |
4H430-15 4HA430-15 |
|||
|
Fluid |
Air |
||||||||||
|
Acting |
Manual control direct acting type |
||||||||||
|
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
|||
|
Orifice size |
16.0mm2 |
12.0mm2 |
25.0mm2 |
18.0mm2 |
30.0mm2 |
18.0mm2 |
30.0mm2 |
18.0mm2 |
|||
|
Lubrication |
No required |
||||||||||
|
Port size |
In=out=G1/4” Exhaust=G1/8” |
In=out=Exhaust=G1/4” |
In=out=G3/8” Exhaust=G1/4” |
In=out=Exhaust=G1/2” |
|||||||
|
Protective class |
IP65 |
||||||||||
|
Pressure range |
0-0.8MPa |
||||||||||
|
Proof pressure |
1.2MPa |
||||||||||
|
Material of body |
Aluminum Alloy |
||||||||||
|
Temperature |
-20℃~60℃ |
||||||||||
|
Operating angle |
±15° |
±8.5° |
±15° |
±8.5° |
±18° |
±10° |
±18° |
±10° |
|||
Feature
.1/2 inch 4H410-15 4H430-15 hand return directional control valve is 5 port hand valve
.with high response and stability nature.
.There are two motion pattern, single-head double-position and single-head three position.
.5/2way hand valve and 5/3 way manual valve are available.
.4H410 hand lever valve is Manual return operated valve and 4HA210 pneumatic solenoid valve is spring retun hand control valve
4H430C-15:5/3 way closed center hand pull valve
4H430E-15: 5/3 way exhaust center hand operated valve
4H430P-15:5/3 way pressure center pneumatic hand control valve
.Pneumatic control valve is the pneumatic system to control the flow of air pressure, flow and flow direction, and ensures the normal work of pneumatic actuator components or institutions of all kinds of pneumatic components.
