PC系列-螺紋直通接頭
PC系列螺紋直通氣動快速接頭（PC4，PC6，PC8,PC10,PC12-02/01/03/04）

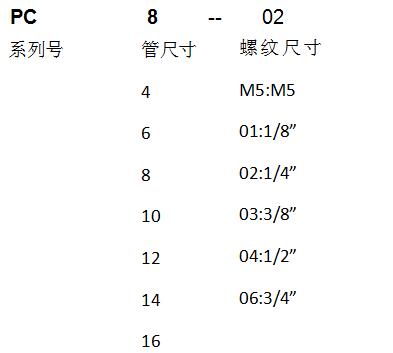

訂購代號
技術(shù)參數(shù)
| 型號 |
PC4-M5 PC4-01 PC4-02 PC4-03 |
PC6-M5 PC6-01 PC6-02 PC6-03 PC6-04 |
PC8-M5 PC8-01 PC8-02 PC8-03 PC8-04 |
PC10-01 PC10-02 PC10-03 PC10-04 |
PC12-01 PC12-02 PC12-03 PC12-04 |
PC14-02 PC14-03 PC14-04 |
PC16-02 PC16-03 PC16-04 PC16-06 |
|
|
流體介質(zhì) |
空氣 |
|||||||
|
最大壓力 |
1.32Mpa(13.5kgf/cm2) |
|||||||
|
壓力范圍 |
正常壓力 |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
| 低壓 |
-99.99~0Mpa(-750~0mmHg) |
|||||||
|
溫度 |
0℃~60℃ |
|||||||
|
適用氣管 |
PU氣管/尼龍管 | |||||||
|
螺紋尺寸 |
1/8”,1/4”,3/8”,1/2” |
|||||||
| 本體材質(zhì) | 黃銅 | |||||||
|
英制插管 |
公制插管 |
φD |
R |
A |
B |
H1 |
H2 |
|
PC5/32-M5 |
PC4-M5 |
4 |
M5 |
4.5 |
21.8 |
10 |
2 |
|
PC5/32-01 |
PC4-01 |
4 |
R1/8 |
6.5 |
20.5 |
10 |
3 |
|
PC5/32-02 |
PC4-02 |
4 |
R1/4 |
9 |
19.5 |
14 |
3 |
|
PC1/4-M5 |
PC6-M5 |
6 |
M5 |
4.5 |
22.8 |
12 |
2 |
|
PC1/4-01 |
PC6-01 |
6 |
R1/8 |
6.5 |
22.2 |
12 |
4 |
|
PC1/4-02 |
PC6-02 |
6 |
R1/4 |
9 |
22.2 |
14 |
4 |
|
PC1/4-03 |
PC6-03 |
6 |
R3/8 |
10 |
21.5 |
17 |
4 |
|
PC1/4-04 |
PC6-04 |
6 |
R1/2 |
10 |
23 |
21 |
4 |
|
PC5/16-01 |
PC8-01 |
8 |
R1/8 |
8 |
26.8 |
14 |
4 |
|
PC5/16-02 |
PC8-02 |
8 |
R1/4 |
10 |
25.2 |
14 |
6 |
|
PC5/16-03 |
PC8-03 |
8 |
R3/8 |
10 |
22.2 |
17 |
6 |
|
PC5/16-04 |
PC8-04 |
8 |
R1/2 |
11 |
23.7 |
21 |
6 |
|
PC3/8-01 |
PC10-01 |
10 |
R1/8 |
8 |
30.7 |
17 |
4 |
|
PC3/8-02 |
PC10-02 |
10 |
R1/4 |
10 |
31 |
17 |
6 |
|
PC3/8-03 |
PC10-03 |
10 |
R3/8 |
10 |
29.5 |
17 |
8 |
|
PC3/8-04 |
PC10-04 |
10 |
R1/2 |
11 |
25.2 |
21 |
8 |
|
PC1/2-01 |
PC12-01 |
12 |
R1/8 |
8 |
31.7 |
19 |
4 |
|
PC1/2-02 |
PC12-02 |
12 |
R1/4 |
10 |
33.2 |
19 |
6 |
|
PC1/2-03 |
PC12-03 |
12 |
R3/8 |
10 |
30 |
19 |
8 |
|
PC1/2-04 |
PC12-04 |
12 |
R1/2 |
11 |
30 |
21 |
8 |
|
- |
PC14-03 |
14 |
R3/8 |
11 |
38 |
24 |
6 |
|
- |
PC14-04 |
14 |
R1/2 |
12 |
39 |
24 |
8 |
|
- |
PC16-03 |
16 |
R3/8 |
13 |
39 |
24 |
10 |
|
- |
PC16-04 |
16 |
R1/2 |
15 |
39 |
27 |
12 |
