PD series pneumatic fittings
PD Series T-type male thread push-in type straight three-way one touch pneumatic fittings
Order code
Technical parameter
Model
PD4-M5
PD4-01
PD4-02
PD4-03
PD6-M5
PD6-01
PD6-02
PD6-03
PD6-04
PD8-M5
PD8-01
PD8-02
PD8-03
PD8-04
PD10-01
PD10-02
PD10-03
PD10-04
PD12-01
PD12-02
PD12-03
PD12-04
PD14-02
PD14-03
PD14-04
PD16-02
PD16-03
PD16-04
PD16-06
Fluid
Air,Water
Max. Pressure
1.32Mpa(13.5kgf/cm2)
Pressure range
Normal pressure
0~0.9Mpa(0~9.2kgf/cm2)
Low pressure
-99.99~0Mpa(-750~0mmHg)
Temperature
0℃~60℃
Applicable tube
PU/Nylon tube
Thread size
M5,1/8”,1/4”,3/8”,1/2”

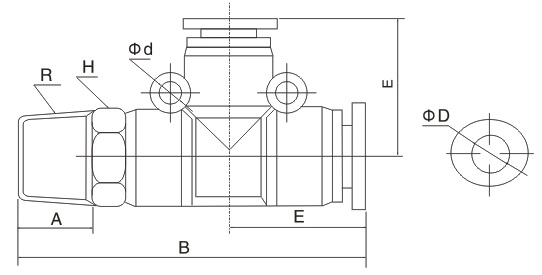

Dimension
Metric Type
φD
R
A
B
H
J
φd
PD4-M5
4
M5
4.5
37
18.5
10
/
PD4-01
4
R1/8
7
40.5
18.5
10
/
PD4-02
4
R1/4
9
42.5
18.5
14
/
PD6-M5
6
M5
4.5
41
21
12
3.5
PD6-01
6
R1/8
7
44.5
21
12
3.5
PD6-02
6
R1/4
9
46.5
21
14
3.5
PD6-03
6
R3/8
10
48.5
21
17
3.5
PD6-04
6
R1/2
11
49
21
21
3.5
PD8-01
8
R1/8
8
47
23
14
4.5
PD8-02
8
R1/4
10
48
23
14
4.5
PD8-03
8
R3/8
10
50.5
23
17
4.5
PD8-04
8
R1/2
11
51.5
23
21
4.5
PD10-01
10
R1/8
8
56
26
17
4
PD10-02
10
R1/4
10
58
26
17
4
PD10-03
10
R3/8
10
59
26
17
4
PD10-04
10
R1/2
11
60
26
17
4
PD12-01
12
R1/8
8
58
27
19
5
PD12-02
12
R1/4
10
60
27
19
5
PD12-03
12
R3/8
10
61
27
19
5
PD12-04
12
R1/2
11
62
27
21
5
Feature
3 way Male Threaded Side Tee PD Pneumatic T Fitting are ready to use, offering fast assembly with no need for tools and offers a broad range of push-in pneumatic fittings to complement our established all brass，nickel plated , Pneumatic fitting series.
Nickel plated brass components provide corrosion and contamination resistance and an extended life. Pre applied thread sealant on all taper threads and recessed captive O-ring on parallel threads provides optimum rapid sealing Immediate quality sealing using silicone free U-packing.
