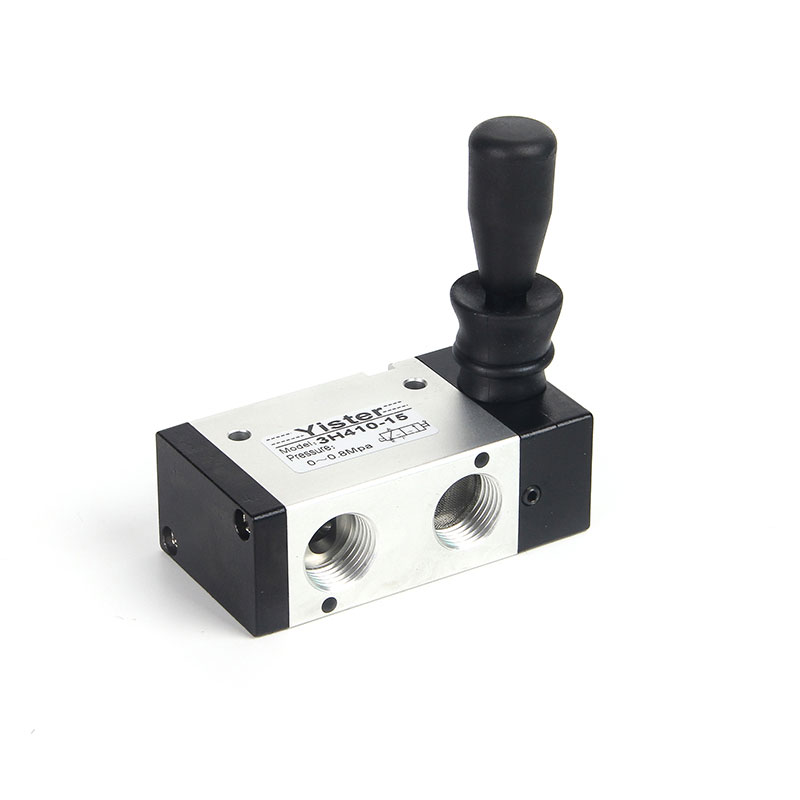

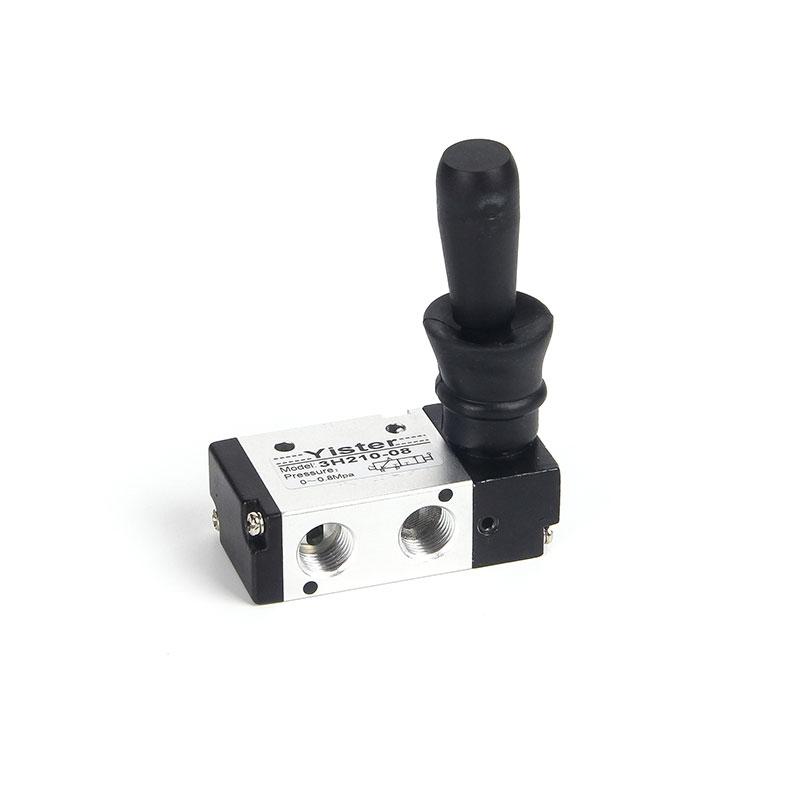

3H310 Series Hand Lever Valve
3H310-08 3H310-10 Two way three position Pneumatic manual return hand control valve

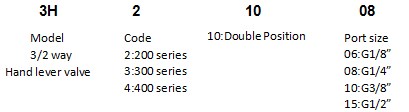

Order code

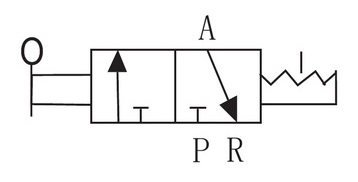

Symbol
Technical parameter
Model
3H210-06
3H210-08
3H310-08
3H310-10
3H410-15
Fluid
Air
Acting
Manual control direct acting type
Valve type
3/2 way hand control valve
Orifice size
14.0mm2
16.0mm2
25.0mm2
30.0mm2
50.0mm2
Lubrication
No required
Port size
G1/8”
G1/4”
G3/8”
G1/2”
Protective class
IP65
Pressure range
0-0.8MPa
Proof pressure
1.2MPa
Material of body
Aluminum Alloy
Temperature
-20℃~60℃

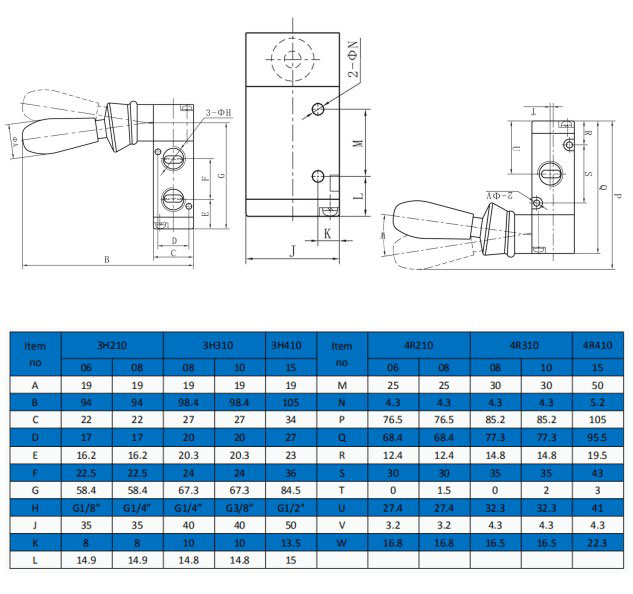

Dimension
Feature
.Two way three position Pneumatic manual return hand control valve is manual operation, smooth actuation, and exact and reliable orientation;
. Port size: 3H310-08:1/4”,3H310-10:3/8”
. Sliding column structure has good tightness and light weight and is easy to install and dismount;
. Internal hole adopts special processing technology which has little attrition friction, long service life;
. No need to add oil for lubrication. Panel-mounting makes it convenient to install and apply.
