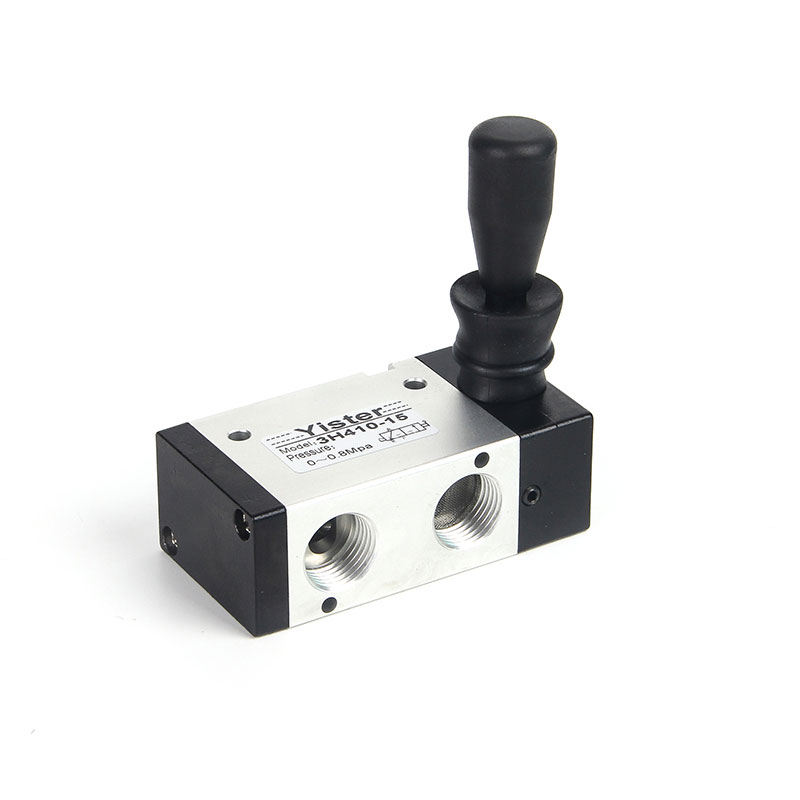

3H410 Series Hand Lever Valve
3H410-15 normally closed 1/2" 3 port 2 position Pneumatic manual hand control valve

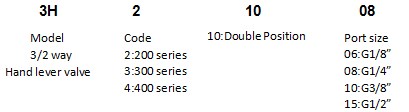

Order code
Symbol
Technical parameter
|
Model |
3H210-06 |
3H210-08 |
3H310-08 |
3H310-10 |
3H410-15 |
|
|
Fluid |
Air |
|||||
|
Acting |
Manual control direct acting type |
|||||
|
Valve type |
3/2 way manual control valve |
|||||
|
Orifice size |
14.0mm2 |
16.0mm2 |
25.0mm2 |
30.0mm2 |
50.0mm2 |
|
|
Lubrication |
No required |
|||||
|
Port size |
G1/8” |
G1/4” |
G3/8” |
G1/2” |
||
|
Protective class |
IP65 |
|||||
|
Pressure range |
0-0.8MPa |
|||||
|
Proof pressure |
1.2MPa |
|||||
|
Material of body |
Aluminum Alloy |
|||||
|
Temperature |
-20℃~60℃ |
|||||
Feature
.1/2” G thread 3H410-15 Two way three position Pneumatic manual return hand control valve is manual operation, smooth actuation, and exact and reliable orientation;
. Sliding column structure has good tightness and light weight and is easy to install and dismount;
. Internal hole adopts special processing technology which has little attrition friction, long service life;
. No need to add oil for lubrication. Panel-mounting makes it convenient to install and apply.
