Cylinder -
MF series mini pneumatic cylinder MF series mini pneumatic cylinder
產(chǎn)品參數(shù)

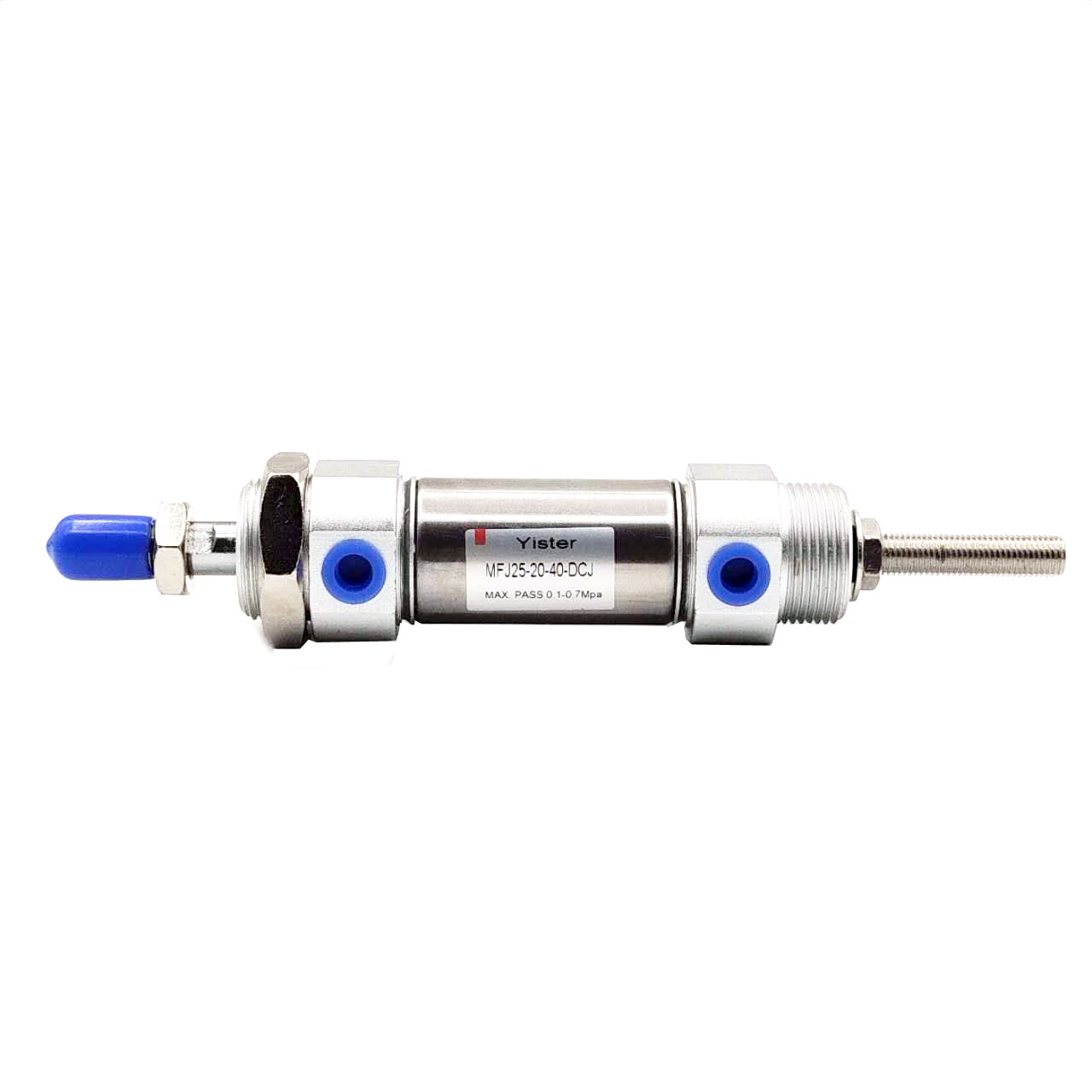

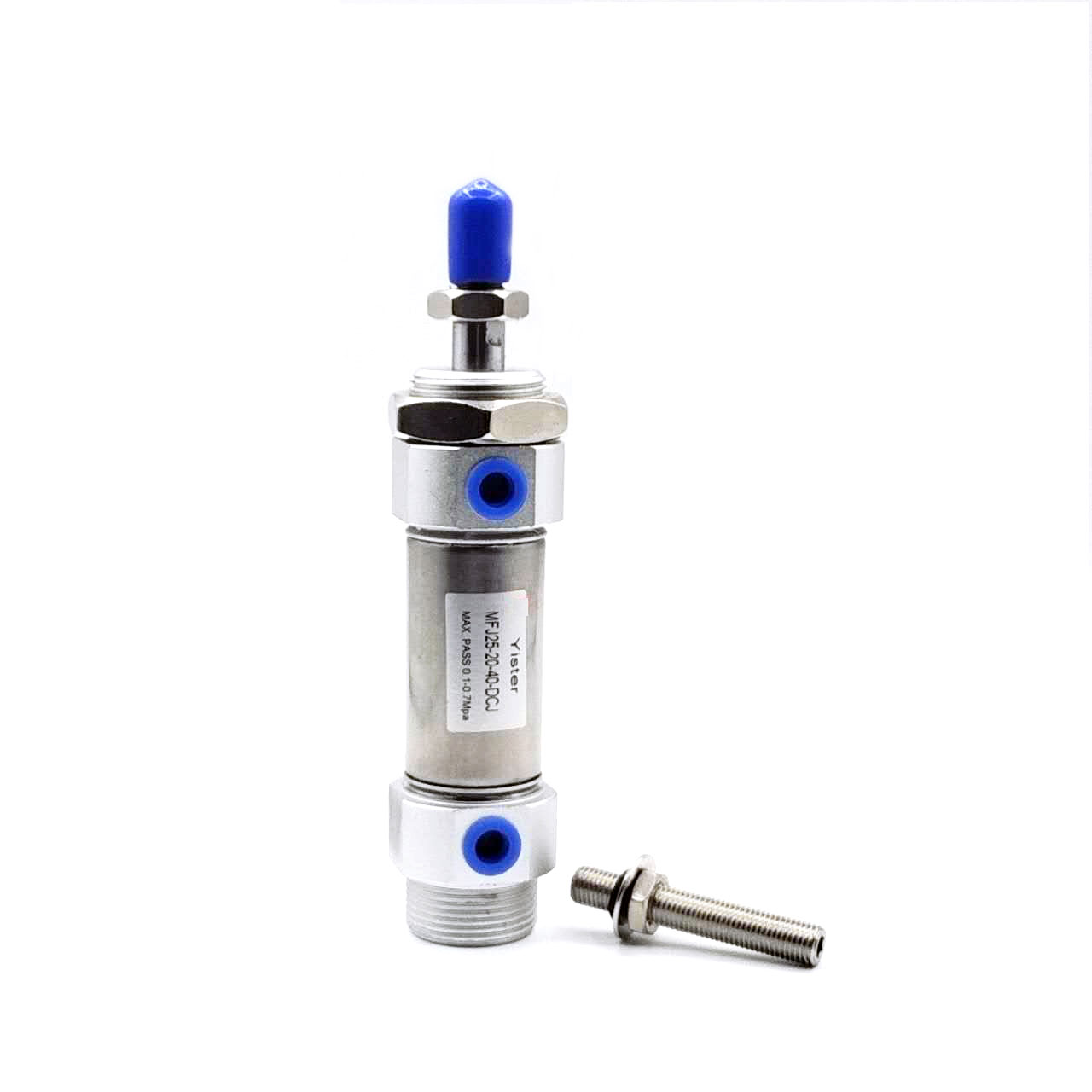

MFJ20X25-40 double acting Stainless steel mini pneumatic cylinder with adjustable stroke

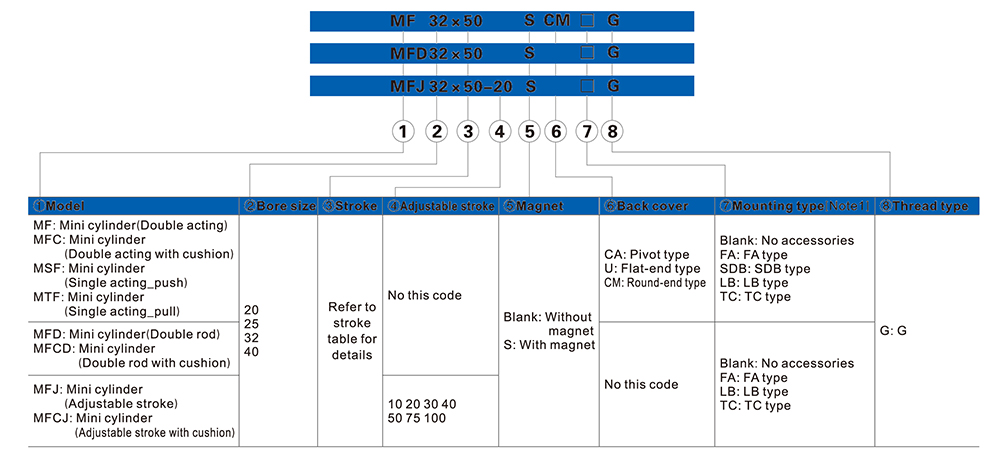

Order code

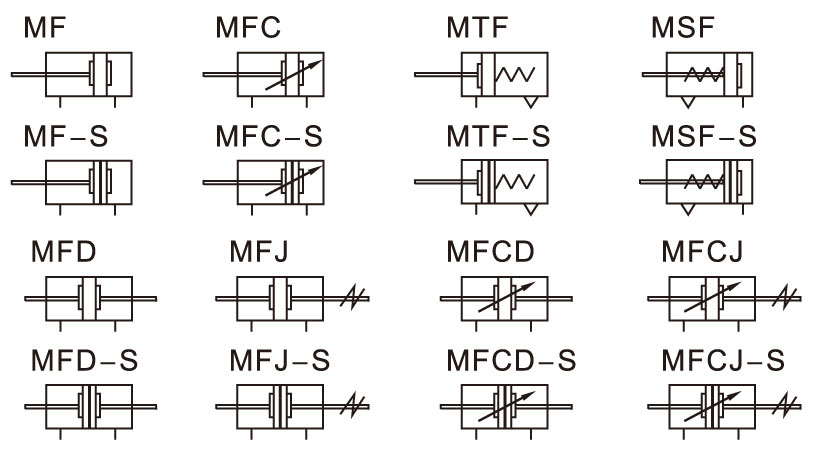

Symbol


Technical parameter

Bore size(mm)

20

25

32

40

Acting type

Double acting  Double acting with cushion  Single acting

Fluid

Air

Operating pressure

Double acting:0.15~0.9MPa

Single acting:0.2~0.9MPa

Proof pressure

1.35MPa

Temperature

-5~60

Speed range mm/s

Double acting:30~800  Single acting:50~800

Stroke Tolerance

0~150+1.0 0 >150 +1.5 0

Cushion type

MFC/MFCD/MFCJ Series:Variable cushion, other series :Bumper

Port size

1/8

1/4

Body material

Stainless Steel

Stroke

Bore size(mm)

Standard stroke(mm)

Max.std stroke(mm)

Max. Stroke(mm)

MF

MFC

20

10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500

500

800

25

32

40

MFD

MFCD

MFJ

MFCJ

20

10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500

300

-

25

300

-

32

500

-

40

500

-

MSF

MTF

20

10 20 30 40 50 60 70 80 90 100 125 150

-

-

25

10 20 30 40 50 60 70 80 90 100 125 150

-

-

32

10 20 30 40 50 60 70 80 90 100 125 150

-

-

40

10 20 30 40 50 60 70 80 90 100 125 150

-

-

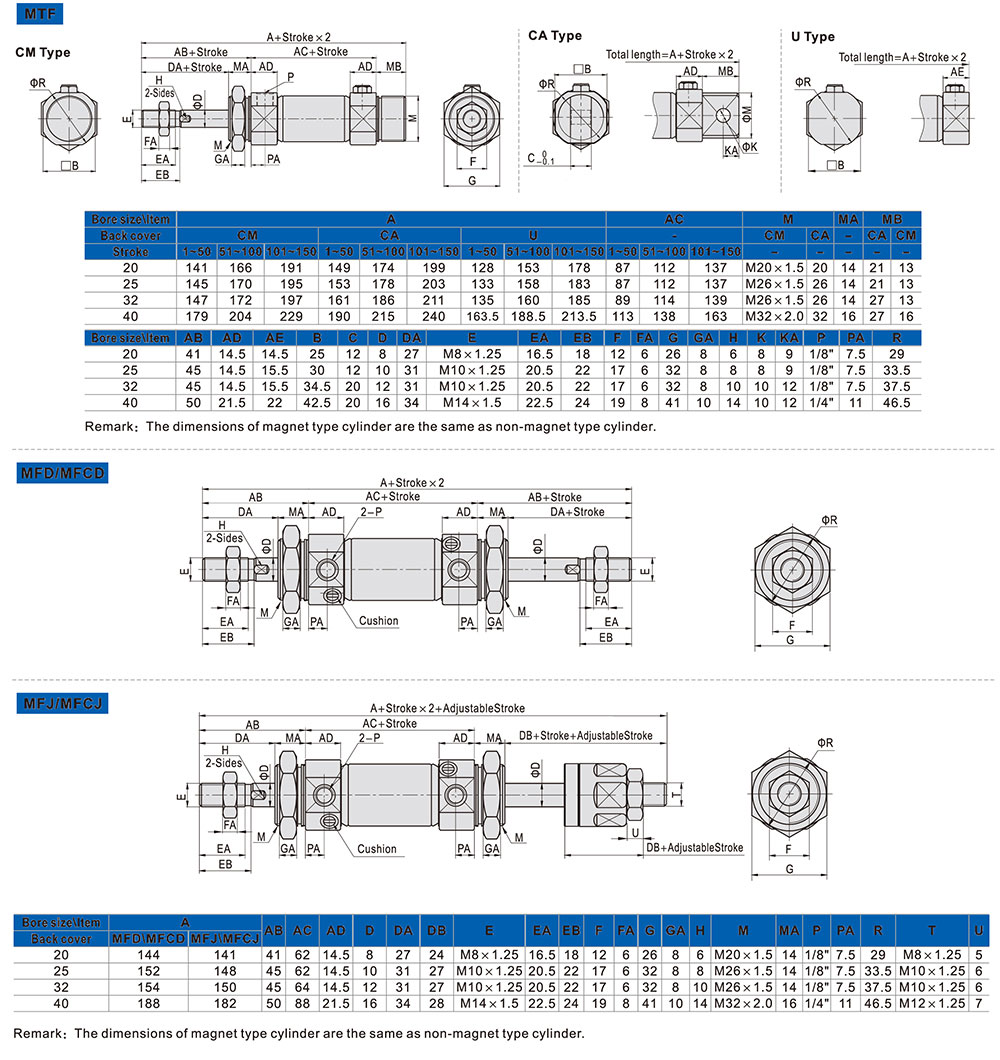

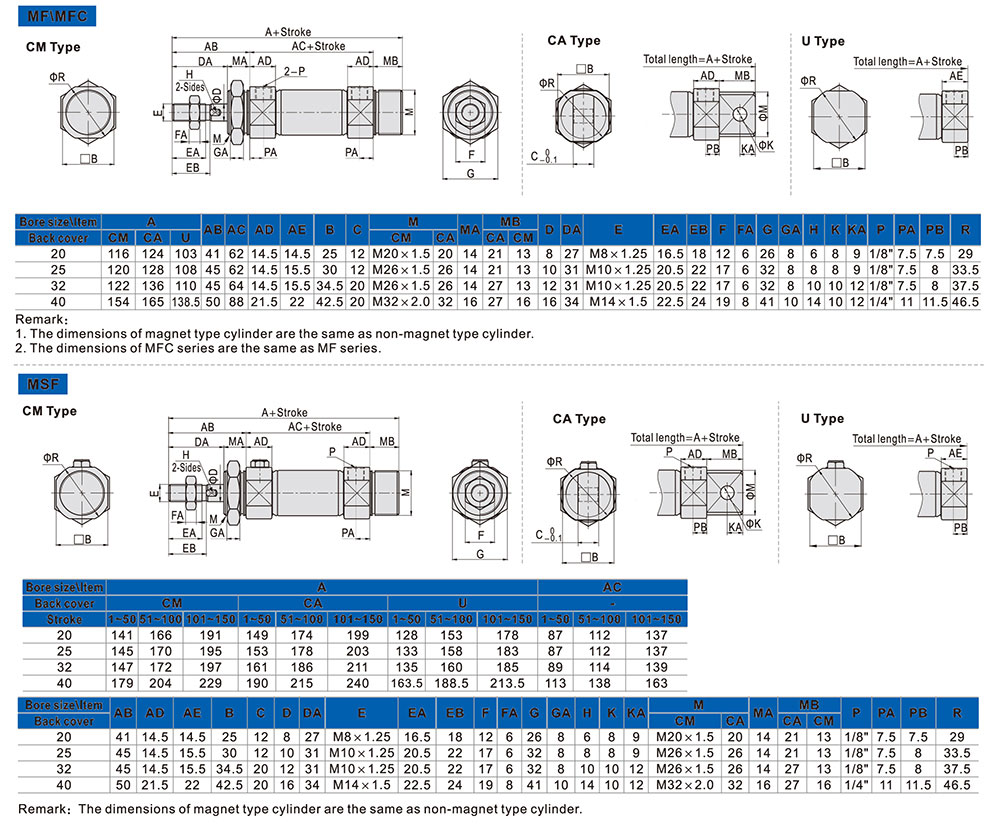

Dimension



Feature

1.MFJ stainless steel mini air cylinder is classical design,durable air control design
2.Energy saving and environmental protection with big low rate,safety and precision
3.Can work at the low pressure,smartness for on and off,good seal performance
4.Single action and double action types for your selection
5.Widely used in the food,machine,industry,abstention,calcification,printing and other area
